REAR SHOCK SEAL BLOCK 14.0x44, ALLBALLS 37-1007 HONDA KAW SUZ

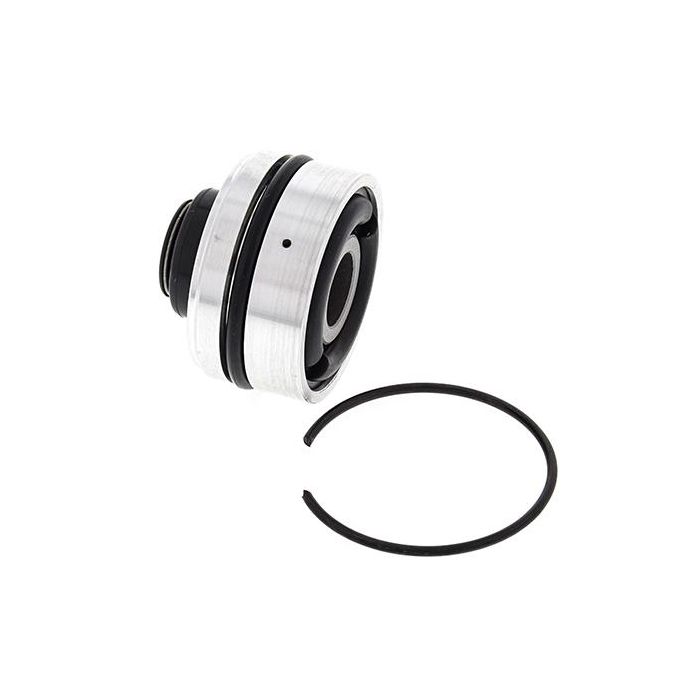

Shock Seal Head Kit - ALLBALLS 37-1007 (1314-0046)

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.
• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Fitment:
Honda:

• CR125R 1981-1992
• CR250R 1991
• CR500R 1991-1993
• XR250R 1996-2004

Kawasaki:

• KDX200 1989-2006
• KDX220 1997-2005
• KDX250 1991-1994
• KLX250R 1994-1996
• KLX250S 2006-2020
• KLX250SF 2009-2010
• KLX300(R) 1997-2007
• KLX650R 1993-1996
• KX125 1987
• KX250 1987
• KX500 1987

Suzuki:

• RM125 1987-1990
• RM250 1987-1989
• RMX250 1989-1990

Dimensions:

• Rod Diameter: 14mm
• Outside Diameter: 44mm
• Length: 38.00mm
• L1 (Length 1): 14mm
• L2 (Length 2): 22mm
• Snap Ring: 44mm x 2mm (round)

Part No.: ALLBALLS 37-1007
ORO Part No.: 29-656.A (Available at oro2u.com)
