PIT BIKE TRIPLE CLAMP SET 33mm FORKS WITH 22mm (7/8") HANDLEBAR RISERS

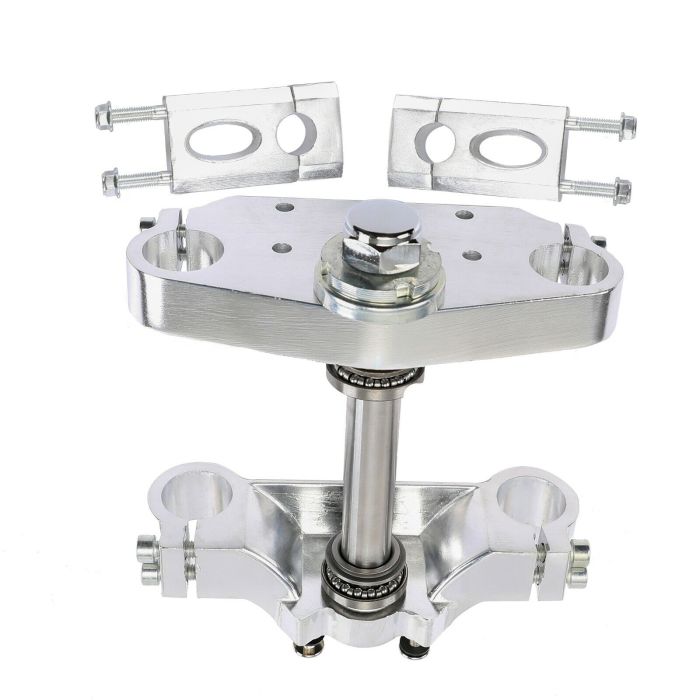

Aluminium triple tree clamp set with 22 mm (7/8") handlebar mounting clamps for pit and dirt bikes using binocular-style 33 mm forks. Supplied with upper and lower clamps/plates, handlebar riser blocks and a steering stem, it is intended for 50–125 cc Chinese models, including examples such as Atomik and Thumpstar.

Features

• Complete assembly: upper and lower clamps, handlebar riser blocks and steering stem
• Designed for binocular-style fork front ends on 50–125 cc Chinese pit/dirt bikes
• Compatible with popular models such as Atomik and Thumpstar, and other similar bikes
• General interfaces: for 22 mm (7/8") handlebars; for 33 mm fork tubes

Specifications

Upper clamp (top yoke)

• Overall width 160 mm
• Fork clamp bores Ø33 mm
• Fork spacing 126 mm

Lower clamp/plate (bottom yoke)

• Overall width 205 mm
• Fork clamp bores Ø33 mm
• Headstock/top bore Ø22 mm
• Central hole pattern 80 mm (horizontal) × 35 mm (vertical)
• Four auxiliary holes Ø8 mm

Steering stem

• Overall length 180 mm
• Diameters Ø23 mm main section and Ø22 mm top section
• 59 mm upper section length

Handlebar riser blocks (pair)

• Clamp bore Ø22 mm (7/8")
• Width 50 mm
• Heights 47 mm and 68 mm
• Distance from top to through-hole centre 20 mm and 25 mm respectively

Vehicle Fitments

• 50 cc, 70 cc, 110 cc and 125 cc Chinese pit/dirt bikes with 33 mm binocular-style forks and 22 mm handlebars, including examples such as Atomik and Thumpstar
