PISTON KIT SHERCO 250 SE-F 14-18, WOSSNER 8959DA, 75.96mm, Sherco 250SE-F '14-18 (75.96mm) 4-STROKE

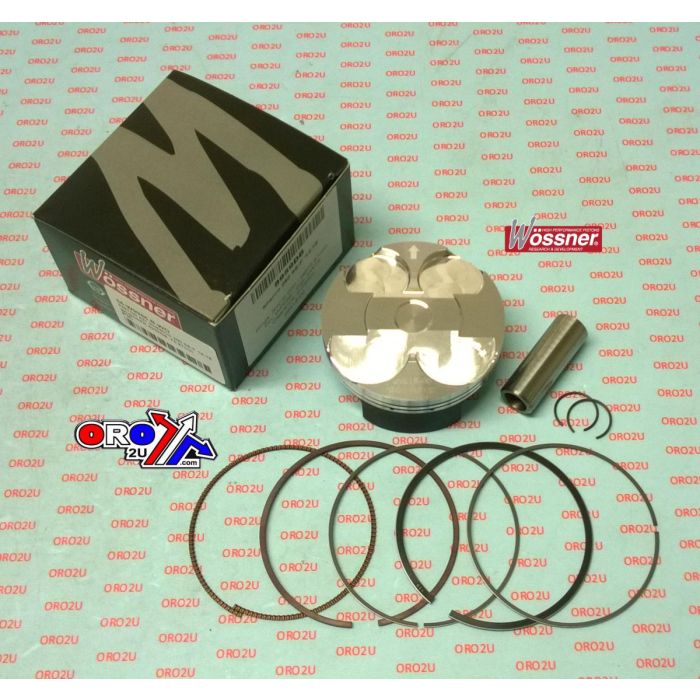

This Wossner piston kit is designed for Sherco 250 SE F and SE F-R models, covering years 2014 to 2018. With a 76mm nominal bore and an actual measurement of 75.96mm, the kit offers a standard fit and a high compression ratio of 13.4:1. Made in Germany, this forged piston set ensures durability, efficient heat transfer, and optimal engine performance.

Features

• Forged high-performance pistons with skirt coating

• Designed to maximise heat transfer from combustion chamber to cylinder walls

• Elliptical profile promotes uniform bearing surface under heat expansion

• Reduces localised pressure and evenly distributes thrust loads

• Prevents piston collapse under high-stress and thermal conditions

Specifications

• Bore size: 75.96mm (nominal 76mm)

• Size: Standard

• Compression ratio: 13.4:1

• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Wossner 8959DA

• 56-W9986.A.WO

• W40235M07600

• Wiseco 40235M07600

Vehicle Fitments

• Sherco 250 SE F-R 2014–2018

• Sherco 250 SE F 2014–2018
