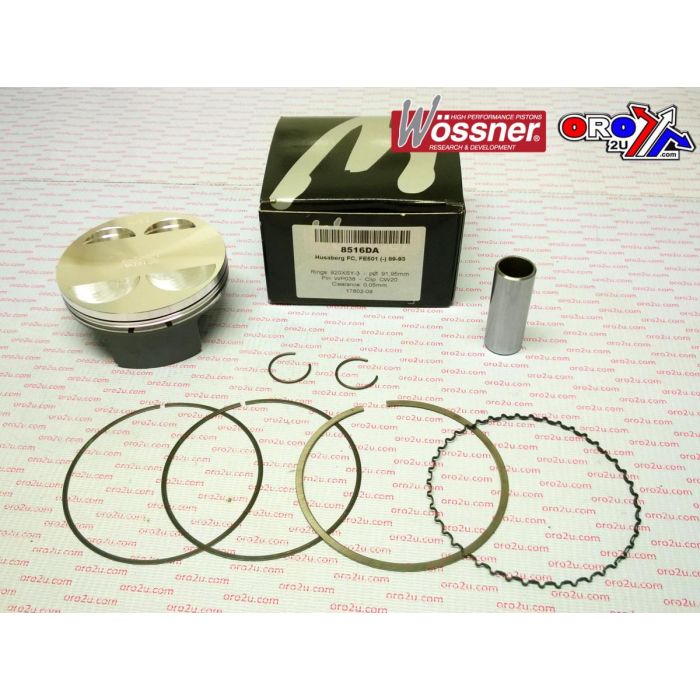

PISTON KIT HUSABERG 501 92.02m, FORGED WOSSNER 8516DC

Piston Kit 92.02mm Bore 91.96 Wossner 8516DC (+0.02)

HUSABERG

• FC501: 1989 - 1993
• FE501: 1989 - 1993

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

• Wossner Piston: Husaberg FC501 92 mm Bore (PN# 8516DC)
• Lock P/N: CW20
• Pin P/N: WP038
• Ring Set P/N: 920XSY

Specifications:

• Display (cm3): 501
• Hub stroke (mm): 59.80
• Clearance (mm): 0.05
• Wossner compression Ratio: OEM
• OEM Compression ratio: Not specified
• Dome volume (cm3): -3.30
• Compression height (mm): 22.60
