PISTON KIT HONDA CR125 92-99 55.00, WOSSNER 8020D100,

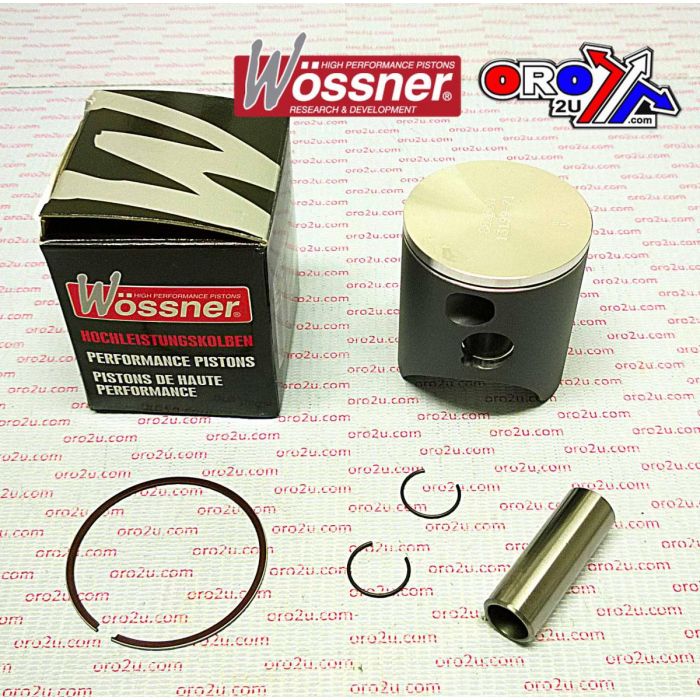

Wossner Forged Piston Kit 55.00mm Bore – Honda CR125 (1992–1999)
This Wossner forged piston kit is designed for Honda CR125 (1992–1999). With a 55.00 mm bore and a piston diameter of 54.95 mm (+1.00 mm oversize), it is suitable for significantly overbored cylinders. Forged in Germany, the piston offers superior strength and thermal performance, with an elliptical design that evenly distributes load to reduce wear and prevent failure.

Features

• Forged construction provides high durability and strength under stress
• Efficient heat transfer design enhances engine cooling
• Elliptical profile ensures even load distribution and reduces piston deformation
• Manufactured in Germany for consistent quality and precision

Specifications

• Bore Size: 55.00 mm
• Piston Diameter: 54.95 mm
• Engine Displacement: 125 cm³
• Stroke: 54.50 mm
• Clearance: 0.05 mm
• Compression Height: 28.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8020D100
• Lock: CW15
• Pin: WP032
• Ring Set: RSB5500
• Rod: P2009

Vehicle Fitments

• Honda CR125 (1992–1999)
