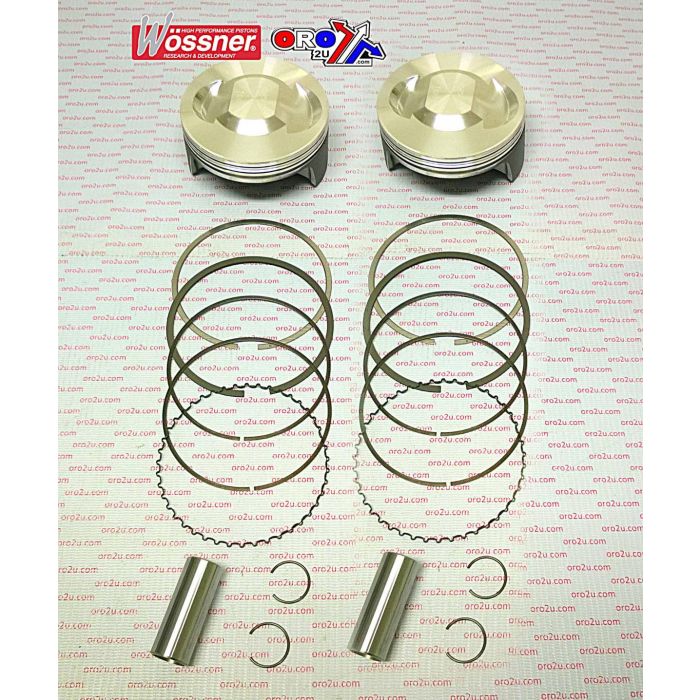

PISTON KIT ALL MONSTER 900 (2), WOSSNER K8545D300-2ROAD, SET/2

Piston Kit 95mm Bore 94.94 Wossner K8545D300-2 (+3mm)

DUCATI

• 900SS
• 900 Monster

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Applications: All years Ducati 900SS/900 Monster Racing
• Piston Model: K8545D300-2 Wossner Piston, 95.00mm, Set of two
• Lock P/N: CW19
• Pin P/N: WP018
• Ring Set P/N: 950XSY

Specifications:

• Bore: 95.00mm
• Display (cm3): 904
• Hub stroke (mm): 68.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 13.50:1
• OEM Compression Ratio: 9.20:1
• Dome volume (cm3): +13.30
• Compression height (mm): 28.60
• Theoretical weight (G):
