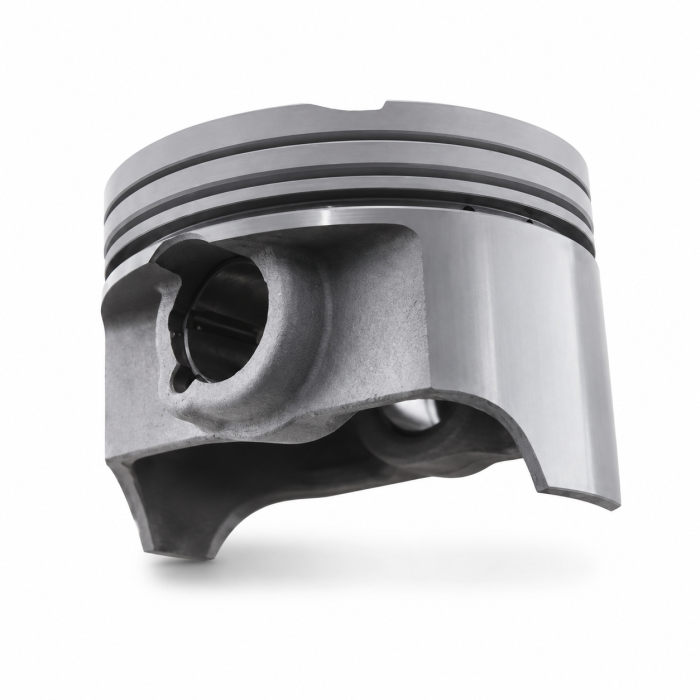

PISTON KIT 97-06 KAWASAKI KLX 250 72.00 STD BORE

This 72.00 mm bore racing piston kit is designed for Kawasaki KLX250 applications, providing a direct replacement piston assembly for engine rebuilds and performance-focused use. It is manufactured from Br-12 aluminium alloy and supplied with a DLC-coated piston pin, double surface treatment, and ring set dimensions matched for the specified piston design.

Features

• Direct OEM replacement design
• Stock mounting location compatibility
• Designed to handle increased power loads
• Made to OEM specifications
• Matches original equipment appearance
• Suitable for racing and high-performance engine use
• Easy to install when fitted by a competent technician
• Professional installation is recommended if unsure
• Visual comparison before ordering is advised to avoid selection errors
• Positioned as a value-focused replacement option

Specifications

• Bore: 72.00 mm
• Piston height: 48.30 mm
• Top of pin to crown: 14.80 mm
• Ring size: 1.0 mm x 1.0 mm x 2.0 mm
• Pin size: 17 mm x 52.5 mm
• Pin coating: DLC coating
• Material: Br-12 aluminium alloy
• Alloy type: Low-expansion aluminium-silicon alloy
• Silicon content: Typically 12% to 21%
• Additional alloy elements: Copper, magnesium and nickel trace elements
• Surface treatment: Micro-Arc crown and phosphating

Cross-Reference OEM Part Numbers

• 13001-1463
• 13008-1071
• 8644DA

Vehicle Fitments

• Kawasaki KLX250
