PISTON KIT 88-93 KR1-250 56.00, WOSSNER8043DA, BIKE REQUIRES 2 PISTONS
SKU
56-W179
Retail Price
£172.99
£144.16
Trade Only: Please login or Click here to find a dealer
Out of stock
PRODUCT INFORMATION
| Weight | 0.222 kg |
|---|---|
| Brand | Wossner |
| Size | 56mm |
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Piston Diameter | 56.00 |
VEHICLE FITMENT
DESCRIPTION

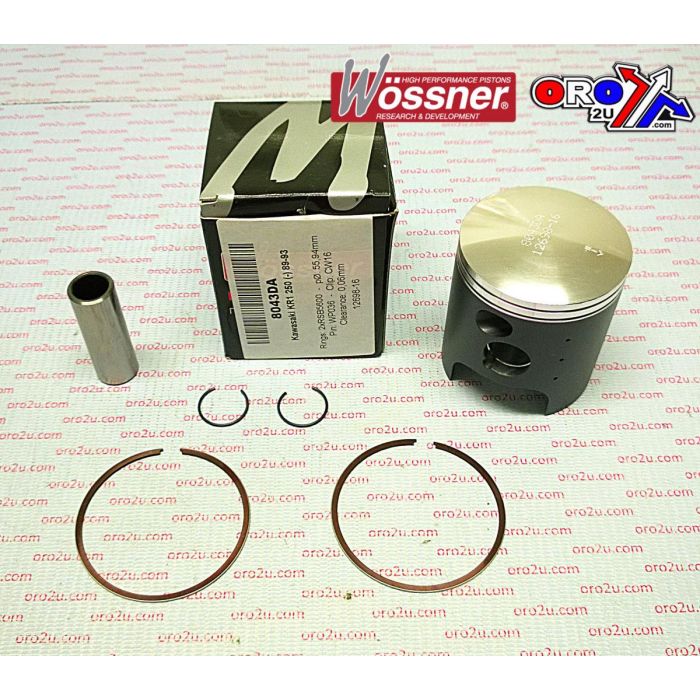

Wossner forged piston kit with a 56mm bore, designed for Kawasaki KR 250 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.
Features
- Forged piston for superior strength and design
- Optimized heat transfer to cylinder walls
- Elliptical design for uniform bearing surface and even thrust load distribution
- Manufactured in Germany
Specifications
- Bore: 56mm
- Standard size piston (PN# 8043DA)
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5600 x2
- Displacement: 249 cm³
- Stroke: 50.60mm
- Clearance: 0.06mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
- Compression Height: 29.50mm
Cross-Reference OEM Part Numbers
- Not provided
Vehicle Fitments
- Kawasaki KR 250 (1988-1993)
A Brand that has a wide range of motorsports Products, Used by Factory Teams and Top Riders
