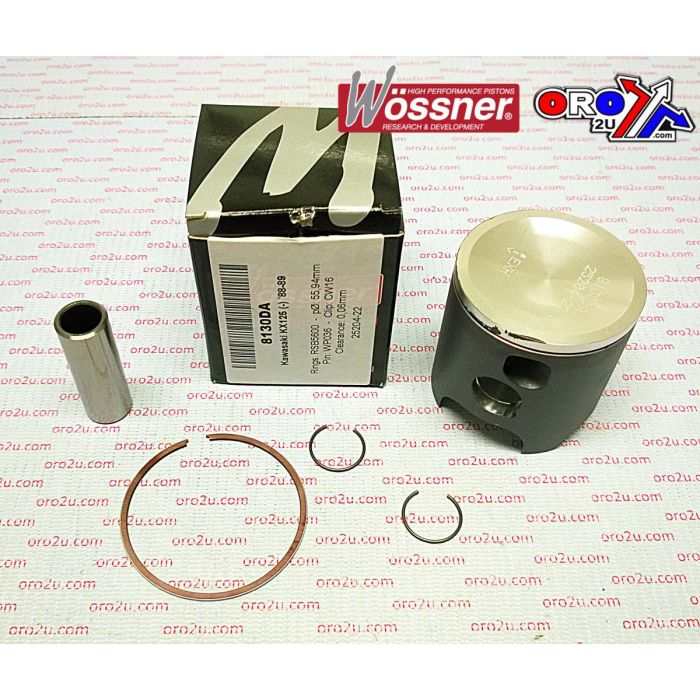

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DA 13001-1266

Piston Kit 56mm Bore 55.94 Wossner 8130DA (STD)

KAWASAKI KX 125 1988 - 1989

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Wossner Piston Kawasaki KX125 56mm Bore (PN#): 8130DA
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5600
• Rod P/N: P2033

Specifications:

• Display (cm3): 125
• Hub Stroke (mm): 50.60
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3):
• Compression Height (mm): 29.50
• Theoretical Weight (G):

Cross Reference Numbers (ONLY):

• 13001-1266, 566M05600
