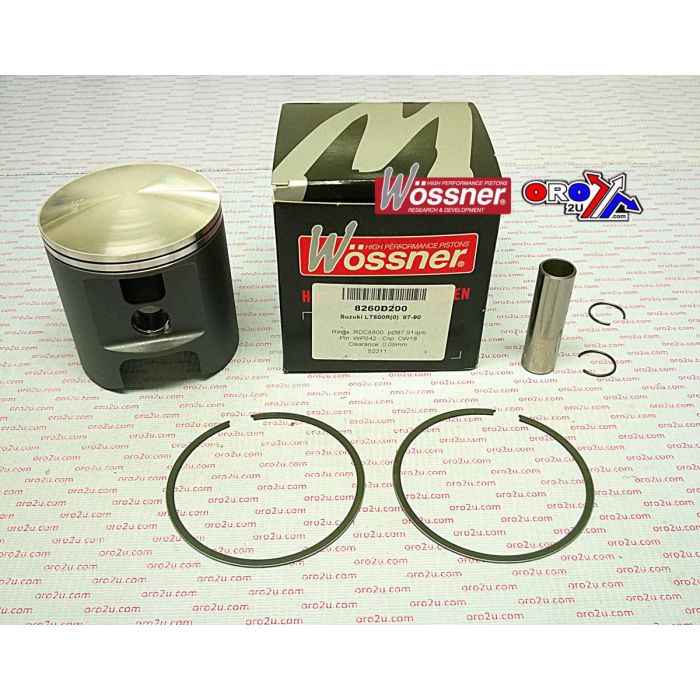

PISTON KIT 87-90 LT500R 88.00, WOSSNER 8260D200 SUZUKI ATV

Wossner forged piston kit for the Suzuki LT500R ATV (1987–1990), featuring a +2.00 mm oversize bore at 88.00 mm. This piston is precision-forged for high-strength, reliable performance in demanding 2-stroke applications. Its elliptical design improves load distribution and reduces localised stress under thermal expansion, helping to maintain structural integrity under intense operating conditions. Made in Germany to exacting standards.

Features

• Forged construction for superior durability and strength

• Designed for optimal heat dissipation from combustion chamber to cylinder walls

• Elliptical piston profile reduces localised pressure and improves thrust load distribution

• Suited for high-performance 2-stroke engines

• Manufactured in Germany

Specifications

• Bore: 88.00 mm

• Actual Bore Diameter: 87.91 mm

• Compression Height: 45.00 mm

• Display Volume: 498 cm³

• Stroke: 86.00 mm

• Clearance: 0.09 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Piston Kit Part No.: 8260D200

• Lock P/N: CW18

• Ring Set P/N: RSC8800 (x2)

• Alternate Part No.: 56-W561+2.00.WO

Vehicle Fitments

• Suzuki LT500R (1987–1990)
