PISTON KIT 86-09 KDX200 67.00, WOSSNER 8093D100 KAWASAKI MX

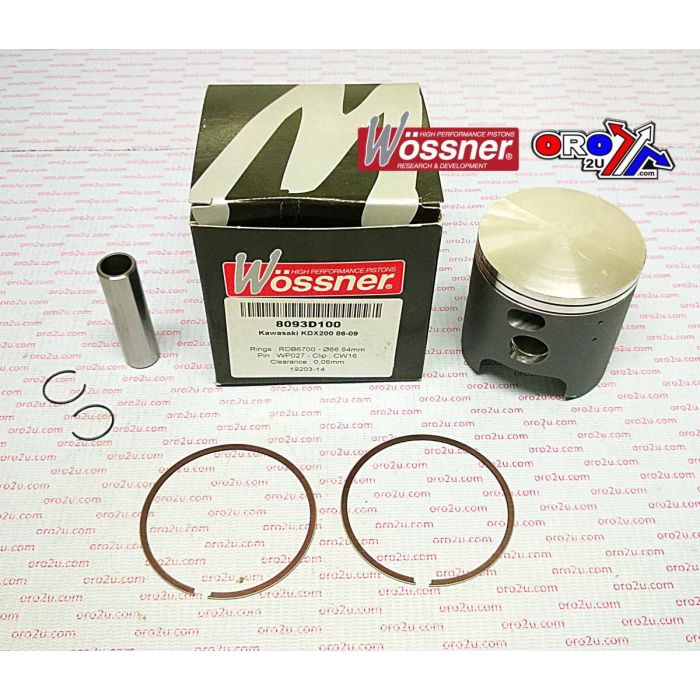

Wossner Forged Piston Kit 67.00mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit is designed for Kawasaki KDX200 models from 1986 to 2006, featuring a 67.00 mm bore and a piston diameter of 66.94 mm (+1.00 mm oversize). Engineered for high-performance 2-stroke applications, the piston’s elliptical design and precision forging ensure optimal heat transfer, uniform load distribution, and enhanced resistance to thermal stress. Made in Germany for accuracy and durability.

Features

• Forged piston construction for superior strength

• Efficient combustion heat dissipation to cylinder walls

• Elliptical design supports even thrust load distribution and minimises pressure points

• Precision manufactured in Germany

Specifications

• Bore Size: 67.00 mm

• Piston Diameter: 66.94 mm

• Engine Displacement: 198 cm³

• Stroke: 58.00 mm

• Clearance: 0.06 mm

• Compression Height: 32.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8093D100

• Lock: CW16

• Pin: WP027

• Ring Set: RSB6700 x 2

• Rod: P2033

Vehicle Fitments

• 1986 Kawasaki KDX 200

• 1987 Kawasaki KDX 200

• 1988 Kawasaki KDX 200

• 1989 Kawasaki KDX 200

• 1990 Kawasaki KDX 200

• 1991 Kawasaki KDX 200

• 1992 Kawasaki KDX 200

• 1993 Kawasaki KDX 200

• 1994 Kawasaki KDX 200

• 1995 Kawasaki KDX 200

• 1996 Kawasaki KDX 200

• 1997 Kawasaki KDX 200

• 1998 Kawasaki KDX 200

• 1998 Kawasaki KDX 220

• 1999 Kawasaki KDX 200

• 2000–2006 Kawasaki KDX 200
