PISTON KIT 86-09 KDX200 66.00, WOSSNER 8093DA KAWASAKI MX 13001-1219

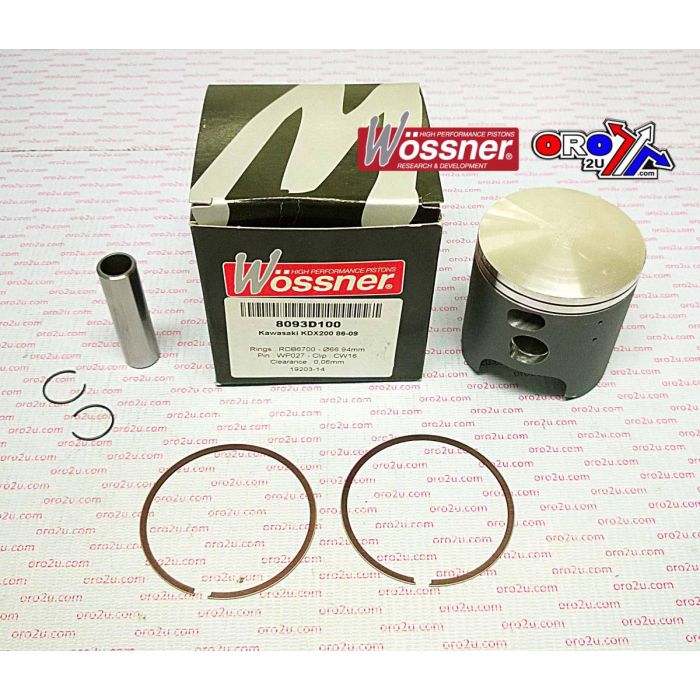

Wossner Forged Piston Kit 66.00mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit is manufactured for Kawasaki KDX200 models produced from 1986 to 2006. With a standard bore of 66.00 mm and a piston diameter of 65.94 mm, this kit delivers durability and performance in demanding 2-stroke engine conditions. The forged aluminium construction and elliptical design allow for superior heat transfer and even load distribution. Made in Germany for precision and reliability.

Features

• Forged aluminium piston for increased strength

• High-efficiency combustion heat dissipation to cylinder walls

• Elliptical geometry for consistent thrust load distribution and reduced stress

• Precision-manufactured in Germany

Specifications

• Bore Size: 66.00 mm

• Piston Diameter: 65.94 mm

• Engine Displacement: 198 cm³

• Stroke: 58.00 mm

• Clearance: 0.06 mm

• Compression Height: 32.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• 13001-1219

• 09104822

• 711M06600

Cross-Reference Wossner Part Numbers

• Piston Kit: 8093DA

• Lock: CW16

• Pin: WP027

• Ring Set: RSB6600 x 2

• Rod: P2033

Vehicle Fitments

• 1986 Kawasaki KDX 200

• 1987 Kawasaki KDX 200

• 1988 Kawasaki KDX 200

• 1989 Kawasaki KDX 200

• 1990 Kawasaki KDX 200

• 1991 Kawasaki KDX 200

• 1992 Kawasaki KDX 200

• 1993 Kawasaki KDX 200

• 1994 Kawasaki KDX 200

• 1995 Kawasaki KDX 200

• 1996 Kawasaki KDX 200

• 1997 Kawasaki KDX 200

• 1998 Kawasaki KDX 200

• 1998 Kawasaki KDX 220

• 1999 Kawasaki KDX 200

• 2000–2006 Kawasaki KDX 200
