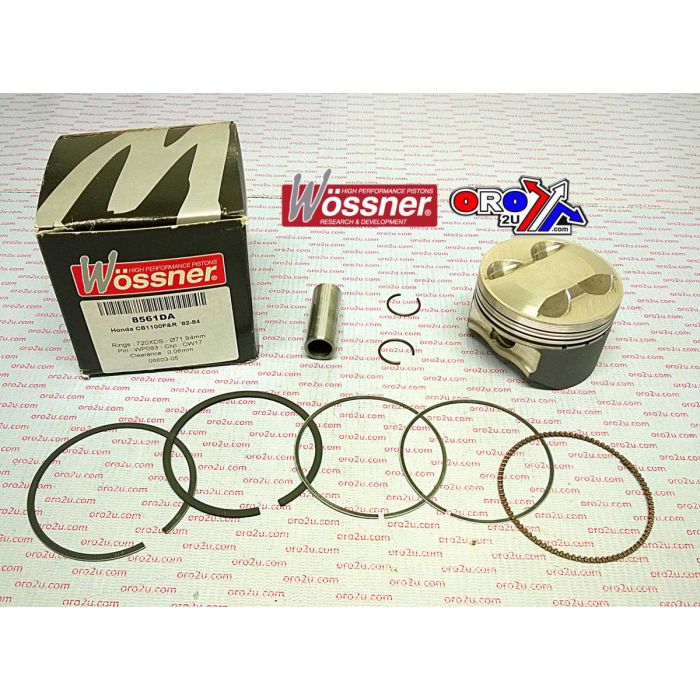

PISTON KIT 82-84 CB1100 HONDA, WOSSNER K8561D200-4ROAD

Piston Kit 72mm Bore 71.94 Wossner K8561D200-4 (+2.00)

HONDA

• CB1100F 1982 - 1984

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Applications: Honda 1982 - 1984 CB1100F, CB1100R
• Piston Model: K8561D200-4 Wossner Piston, 72mm
• Stroke: 69mm
• OEM Compression Ratio: 9.7:1
• Dome Volume: +3.7cm
• Compression Height: 25.40mm

Specifications:

• Lock P/N: CW17
• Pin P/N: WP083
• Ring Set P/N: 720XDS
• Display (cm3): 1123
• Hub stroke (mm): 69.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 10.00:1
• OEM Compression Ratio: 9.70:1
• Dome volume (cm3): +3.70
• Compression height (mm): 25.40
• Theoretical weight (G):
