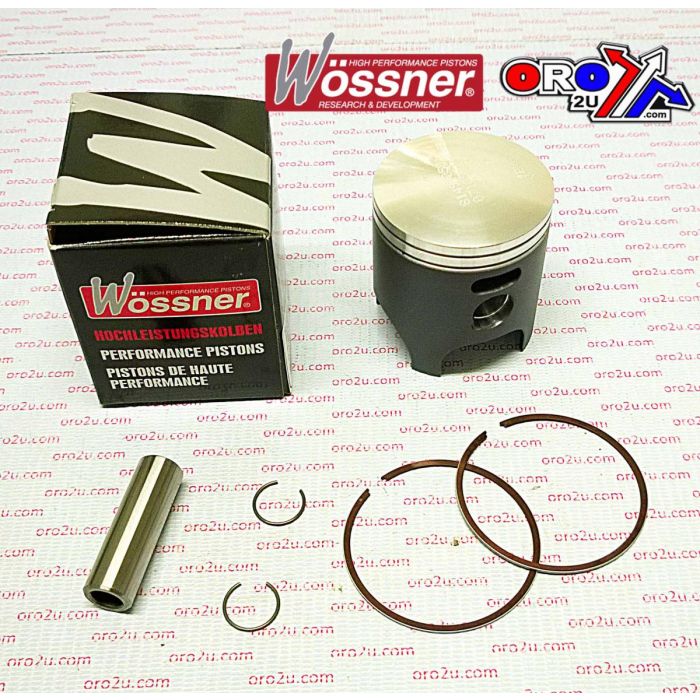

PISTON KIT 80-84 CR125 56.50, FORGED WOSSNER 8149D100

Piston kit 56.50mm Bore 56.44 Wossner 8149D100 (+1.00)

HONDA
CR125 1980 - 1984,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W448+P4.WO (oro2u.com)
Wossner Piston Honda CR125 56.50mm Bore (PN# 8149D100)
Lock P/N CW14
Pin P/N WP025
Ring Set P/N RSB5650 X 2
Rod P/N P2040

Display (cm3) 120
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.50
Theorectical weight (G)
