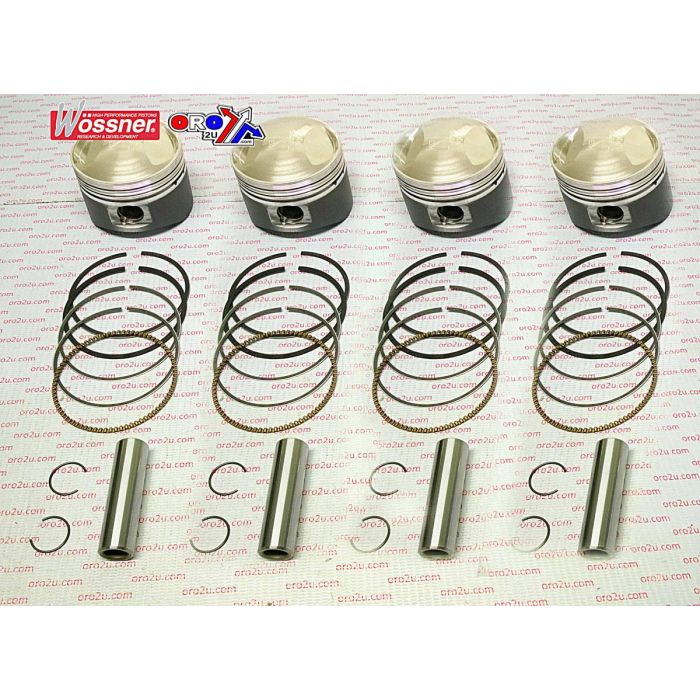

PISTON KIT 65.00mm SET/4 HONDA CB750 F K WOSSNER K8799D400-4

Forged piston kit supplied as a set of four pistons with associated components for performance-focused engine rebuilds, engineered for improved heat transfer and structural stability under load.

Features

• Forged piston construction for enhanced strength and endurance
• Designed to maximise heat transfer from combustion chamber to cylinder walls
• Elliptical profile provides uniform bearing surface under heat expansion
• Reduces localised pressure and evenly distributes thrust loads
• Prevents piston collapse and maintains structural integrity under stress
• Manufactured in Germany

Specifications

• Bore: 65.00 mm (+4.00 mm oversize)
• Clip part number: CW15
• Piston pin: WP102
• Ring set: 650XKS
• Displacement: 836 cm³
• Stroke: 63.00 mm
• Clearance: 0.06 mm
• Compression ratio: 10.30:1
• OEM compression ratio: 9.20:1
• Dome volume: -5.30 cm³
• Compression height: 23.50 mm

Cross-Reference OEM Part Numbers

• K8799D400-4

Vehicle Fitments

• Honda CB750 F [2 Valve] 1969-1978
• Honda CB750 K [2 Valve] 1969-1978
