PISTON KIT/4 76mm STD KAWASAKI KZ10R C TURBO WOSSNER K8767DA-4

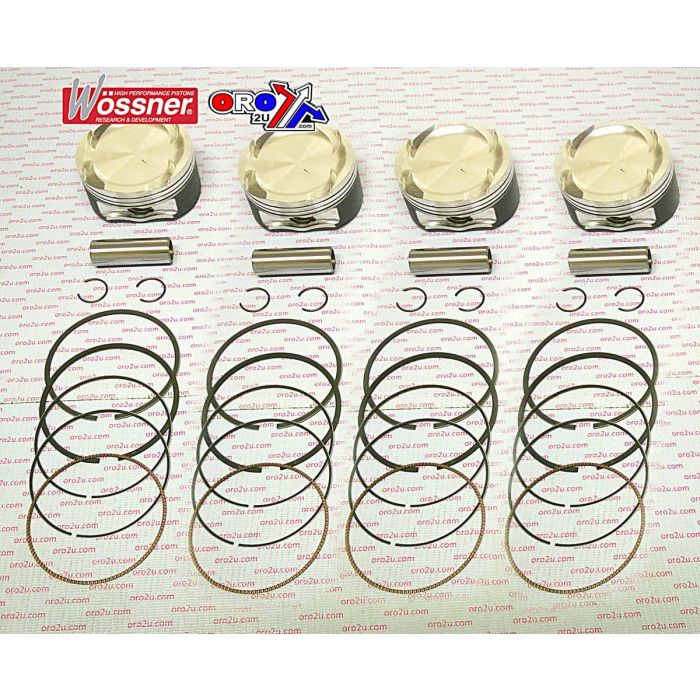

A standard-bore forged piston kit engineered for high strength and thermal stability, with a 76.00 mm diameter and a Wossner-rated compression ratio of 10.00:1. Designed to promote efficient heat transfer and maintain geometry under load, it is supplied with piston rings, clips and piston pin.

Features

• Forged construction engineered for superior strength and design
• Optimised combustion chamber heat transfer to cylinder walls
• Elliptical profile for uniform bearing surface under heat expansion, helping prevent piston collapse
• Manufactured in Germany
• Supplied with piston rings, clips and piston pin

Specifications

• Bore: 76.00 mm (Standard)
• Displacement: 998 cm³ / 1051 cm³
• Stroke: 55.00 mm
• Clearance: 0.06 mm
• Compression ratio (Wossner): 10.00:1
• OEM compression ratio: 12.70:1
• Dome volume: -9.30 cm³
• Compression height: 22.70 mm
• Theoretical weight: Not specified
• Manufacturer: Wossner

Cross Reference Numbers

• K8767DA-4 (STD)

Vehicle Fitments

• Kawasaki ZX10R Turbo (2008–2010)
