PISTON KIT 11-13 HVA CR150 58, WOSSNER 8283DC HUSQVARNA

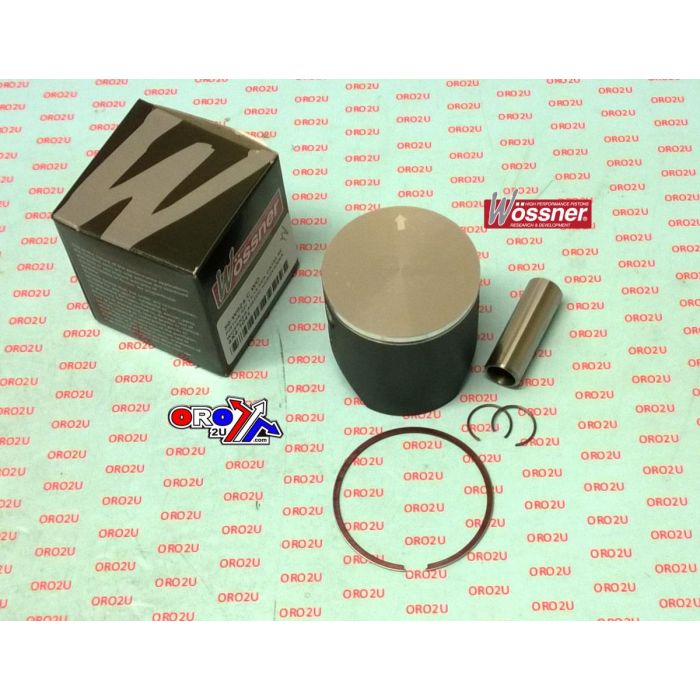

This Wossner forged piston kit is a +0.02mm oversize replacement for the Husqvarna CR150 two-stroke engines from 2011 to 2013. Built to deliver strength, precision, and reliable performance, it is suited for engines requiring slight overbore fitting.

Features

• Forged piston ensures superior mechanical strength and reliability

• Elliptical design supports uniform load distribution under thermal expansion

• Enhances heat transfer efficiency from combustion chamber to cylinder walls

• Prevents piston collapse through even thrust load dispersion

• Manufactured in Germany

Specifications

• Bore Size: 58.02mm

• Actual Piston Size: 57.96mm

• Display Displacement: 144 cm³

• Stroke: 54.50mm

• Piston Clearance: 0.06mm

• Compression Ratio: 2-stroke (Wossner and OEM)

• Compression Height: 28.00mm

• Circlip Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5800

Cross-Reference OEM Part Numbers

• Part No: 56-W924.C.WO

Vehicle Fitments

• Husqvarna CR150 (2011–2013)
