PISTON KIT 07-20 TRX420 86.50, 8869DA WOSSNER FORGED RANCHER 13101-HP5-600, TRX420FA/FE/FM/TE/TM/FPA/FPE/F
SKU
56-W136.000.WO
Retail Price
£202.09
£168.41
Trade Only: Please login or Click here to find a dealer
1 In stock
PRODUCT INFORMATION
| Weight | 0.4 kg |
|---|---|
| Brand | Wossner |
| Size | 86.5mm |
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Piston Diameter | 86.50 |
VEHICLE FITMENT
DESCRIPTION

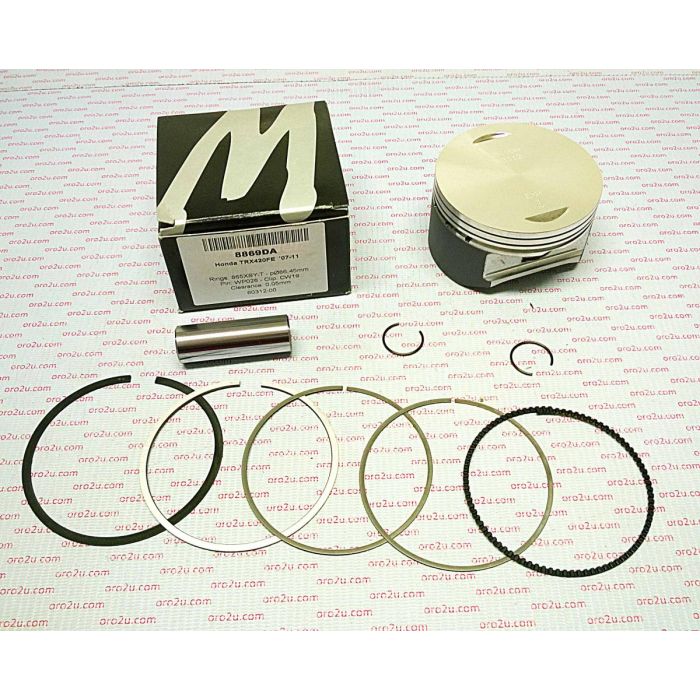

- Piston Kit: Wossner 8869DA, with an 86.50mm bore (STD)
- Application: Honda TRX420FA/FE/FM/TE/TM/FPA/FPE/FPM Rancher, spanning the years 2007 to 2020
- Features:
- Wossner forged pistons known for superior strength and design
- Engineered for efficient combustion chamber heat transfer to cylinder walls
- Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
- Manufacturing: Made in Germany
- Additional Parts:
- C-Clip: CW19
- Pin: WP026
- Rings: 865XSY
- Size: 86.45mm
- Specifications:
- Displacement: 420 cm³
- Hub Stroke: 72.00mm
- Clearance: 0.06mm
- Compression Ratio: Wossner (not specified), OEM (not specified)
- Dome Volume: Not provided
- Compression Height: 38.00mm
- Theoretical Weight: Not provided
Additionally, here are some cross-reference numbers:
- 13101-HP5-600
- 40050M08650
- 01.1487.000
