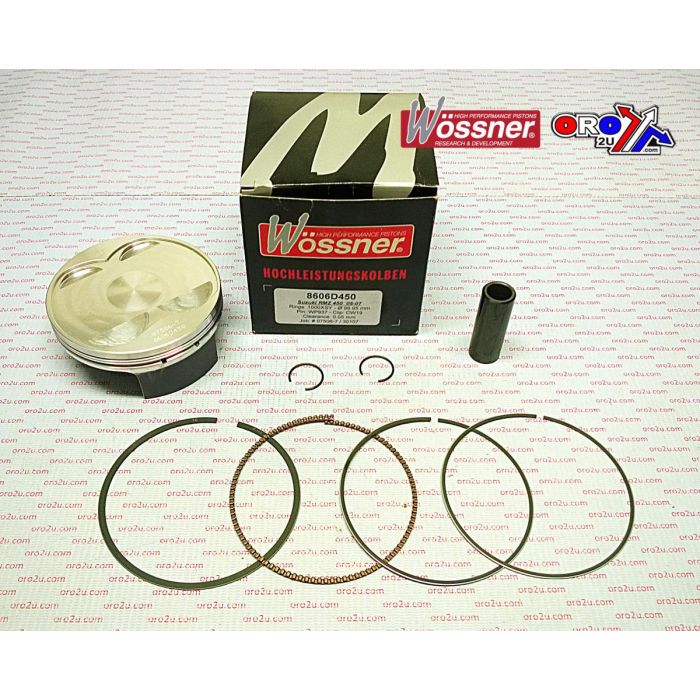

PISTON KIT 05-07 RMZ450 95.50, FORGED WOSSNER 8606DA, 12111-35G01-0F0

Wossner forged piston kit with a 96mm bore, designed for Suzuki RM-Z 450 models. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany

Specifications

• Bore: 96mm
• Standard size piston (PN# 8606DA)
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 955XSY
• Displacement: 449 cm³
• Stroke: 62.60mm
• Clearance: 0.04mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.00:1
• Dome Volume: -3.10 cm³
• Compression Height: 22.30mm

Cross-Reference OEM Part Numbers

• 12111-35G01-0F0

Vehicle Fitments

• Suzuki RM-Z 450 (2005-2007)
