PISTON KIT 04-10 RM125 56.00, WOSSNER 8098D200 SUZUKI MX

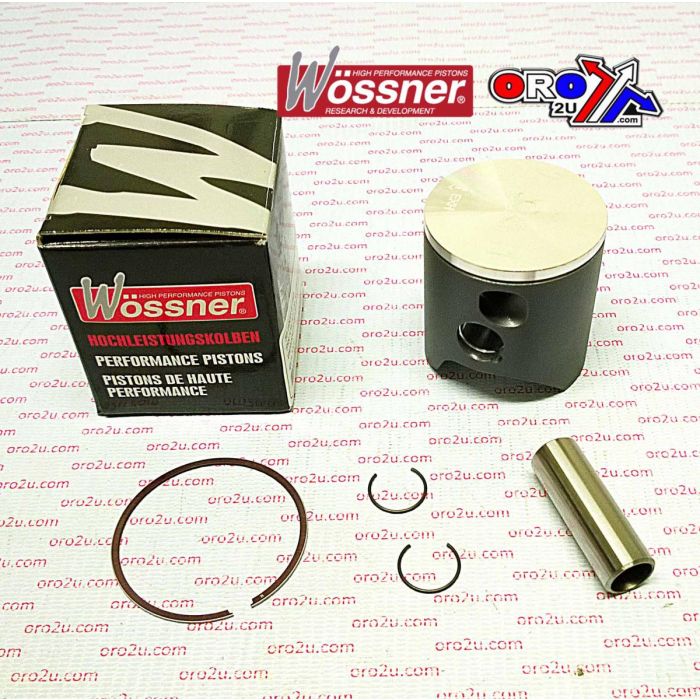

The Wossner 8098D200 piston kit is a +2.00 oversize forged piston built for Suzuki RM125 models from 2004 to 2012. With a 56.00mm bore and 55.95mm piston diameter, this piston is designed to handle the demands of high-performance two-stroke engines. Its elliptical shape ensures balanced expansion under heat and evenly distributes load forces, reducing the risk of piston collapse. Precision-manufactured in Germany, this piston offers reliable performance and superior durability.

Features

• Forged construction ensures high strength and resistance to thermal stress

• Engineered for maximum heat transfer efficiency from combustion chamber to cylinder wall

• Elliptical profile promotes uniform expansion and pressure distribution

• Manufactured in Germany with exacting quality standards

Specifications

• Bore: 56.00 mm

• Piston Diameter: 55.95 mm

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.05 mm

• Compression Height: 29.50 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5600

• Rod Part Number: P2016

Vehicle Fitments

• Suzuki RM125 2004 - 2012
