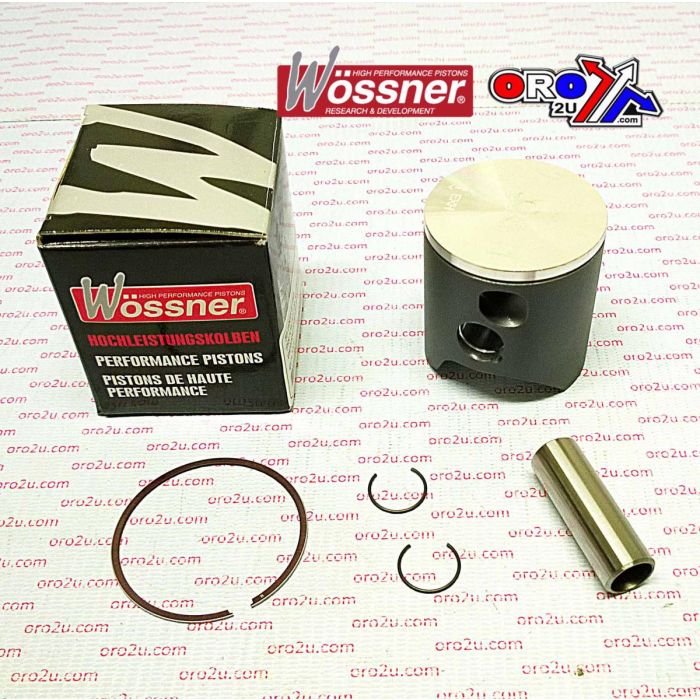

PISTON KIT 04-10 RM125 54.00 B, WOSSNER 8098DB SUZUKI MX

The Wossner 8098DB piston kit is a +0.01 oversize forged piston engineered for Suzuki RM125 models from 2004 to 2012. With a 54.00mm bore and 53.95mm piston diameter, this high-performance piston ensures durability, efficient heat transfer, and reliable operation in two-stroke engines. Its elliptical design promotes uniform expansion and even load distribution, reducing the likelihood of piston collapse. Manufactured in Germany, this piston kit is built to meet demanding engine performance standards.

Features

• Forged construction provides superior strength and extended service life

• Designed for effective combustion heat transfer to the cylinder walls

• Elliptical shape ensures balanced expansion and reduces stress concentrations

• Precision-engineered in Germany

Specifications

• Bore: 54.00 mm

• Piston Diameter: 53.95 mm

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.05 mm

• Compression Height: 29.50 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5400

• Rod Part Number: P2016

Vehicle Fitments

• Suzuki RM125 2004 - 2012
