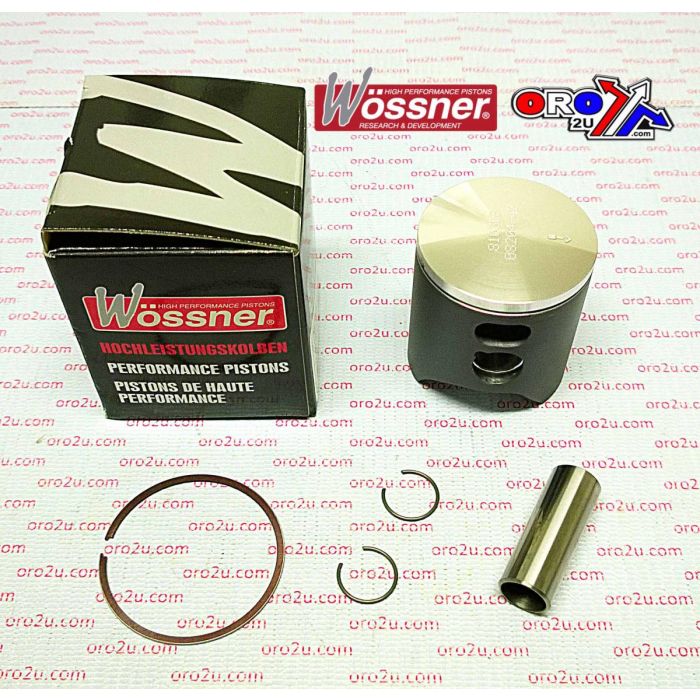

PISTON KIT 02-18 RM85 48.00 C, WOSSNER 8103DC SUZUKI MX

This Wossner forged piston kit with a 48.02mm bore (+0.02mm oversize) is designed for Suzuki RM85 models from 2002 to 2018. Manufactured in Germany, this high-precision piston is optimised for performance and durability in two-stroke engines. Its forged construction and elliptical profile ensure efficient heat management and uniform load distribution, preventing mechanical failures under high operating conditions.

Features

• Forged construction for exceptional strength and durability

• Designed for optimal heat transfer from combustion chamber to cylinder walls

• Elliptical shape ensures even thrust load distribution and minimises the risk of piston collapse

• Made in Germany

Specifications

• Bore: 48.02mm

• Actual Bore: 47.97mm

• Engine Displacement: 84 cm³

• Stroke: 46.80mm

• Clearance: 0.05mm

• Compression Ratio: 2-stroke (Wossner and OEM)

• Compression Height: 27.00mm

• Lock Part Number: CW14

• Pin Part Number: WP058

• Ring Set Part Number: RSB4800

• Rod Part Number: P2007

Cross-Reference OEM Part Numbers

• Not specified

Vehicle Fitments

• Suzuki RM85 2002 - 2018
