PISTON KIT 00-20 KX65 44.50 C, WOSSNER 8196DC KAWASAKI MX

This Wossner piston kit with a 44.52mm bore (+0.02mm oversize, actual size 44.47mm) is designed for Kawasaki KX65 (2000–2020) and Suzuki RM65 (2000–2012). Precision-forged in Germany, it delivers exceptional strength, consistent performance, and optimised heat management in two-stroke engine applications.

Features

• Forged piston construction ensures high durability and mechanical strength

• Engineered for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical profile distributes thrust loads evenly, minimising stress and preventing piston collapse

• Manufactured in Germany for precision and quality assurance

Specifications

• Bore size: 44.52 mm

• Actual piston size: 44.47 mm

• Display (cm³): 65

• Stroke (mm): 41.60

• Clearance (mm): 0.05

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height (mm): 23.60

Vehicle Fitments

• 2000–2020 Kawasaki KX65

• 2000–2012 Suzuki RM65

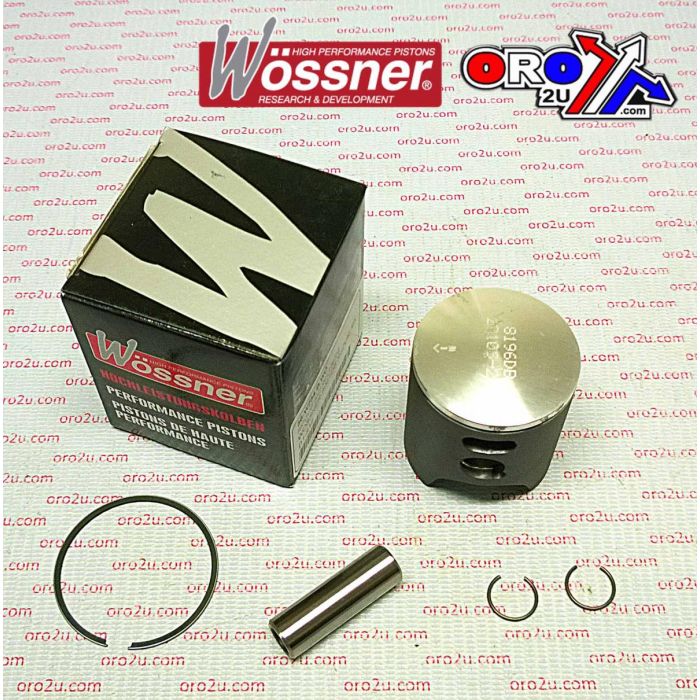

Included Components

• Piston: Wossner PN# 8196DC

• Lock: PN# CW12

• Pin: PN# WP091

• Ring Set: PN# RSB4450

• Rod: PN# P2001
