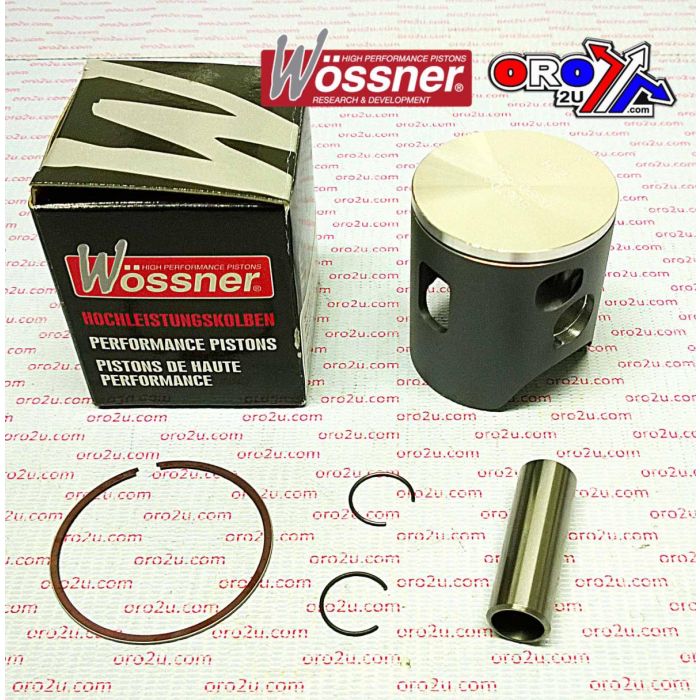

PISTON KIT 00-03 CR125 54.00 C, WOSSNER 8067DC HONDA MX

The 54.02mm Bore Wossner Piston Kit (Part No. 8067DC) is a +0.02 oversized forged piston specifically designed for Honda CR125 models from 2000 to 2003. Made in Germany, this piston incorporates an elliptical design to evenly distribute thrust loads and eliminate localised stress during heat expansion. Its structure supports efficient combustion heat transfer to the cylinder wall, contributing to engine reliability and performance in two-stroke applications.

Features

• Forged construction for superior durability

• Designed to optimise heat transfer from the combustion chamber

• Elliptical profile ensures consistent surface pressure distribution

• Prevents piston collapse under thermal load

• Manufactured in Germany

Specifications

• Bore Size: 54.02 mm

• Actual Bore: 53.97 mm

• Clearance: 0.05 mm

• Compression Height: 28.00 mm

• Stroke: 54.50 mm

• Displacement: 125 cm³

• Compression Ratio: 2-stroke (Wossner and OEM)

Vehicle Fitments

• 2000 Honda CR 125

• 2001 Honda CR 125

• 2002 Honda CR 125

• 2003 Honda CR 125

Included Components

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5400

• Rod: P2009
