Oil Plug Thread Repair Kit M20 from M18

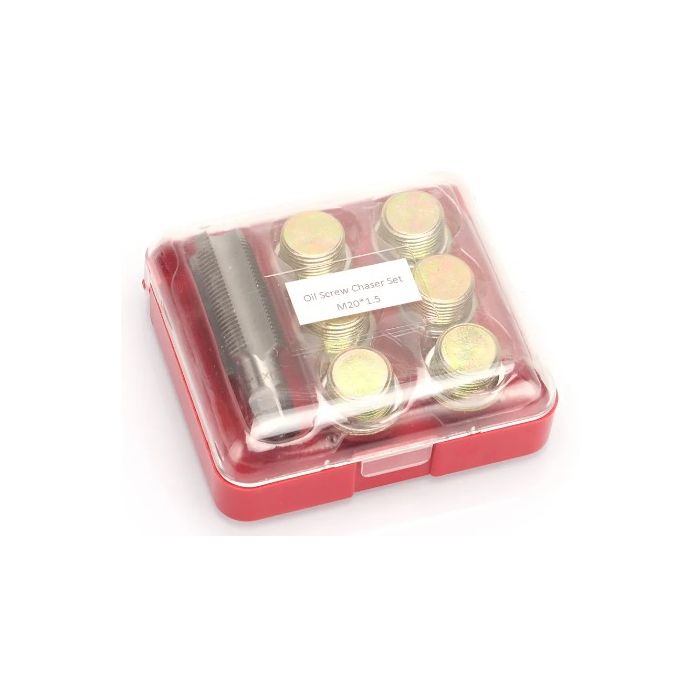

PACKAGE CONTENTS:

6 M20x1.50 Drain Plugs

6 M20 Sealing Washers

1 M20x1.50 Threading Tap

INSTRUCTIONS

1. Determine the original thread size of the old oil pan plug by measuring the diameter of the old oil pan plug

2. Select the next size sump plug. Example: The diameter of the original plug is 12mm, and a plug with a size of 13mm is used.

Try using the same pitch and compare the pitch of the old plug to the proper thread. For example: the original thread 1.25 uses a thread with a plug of 13mm x 1.25

3. Fill the threads of the plug with clean shaft/bearing grease

4. Use a suitable drive head to screw the threads into the oil pan

5. Once you start trimming the screw holes, continue to turn clockwise to slowly cut the thread with a motion turn and reverse (counter-clockwise) 1/4, this will help give a good full thread.

6. After cutting, remove the faucet and clean it.

7. Pour oil into the engine and plug the oil pan to flush out any metal debris that may have fallen into the engine.

8. Install a suitable new oil pan plug and copper gasket and torque the vehicle

Used to tap damaged threads and slightly increase the diameter of the drain hole, then install a new drain plug and washer.

Ideal for repairing oil pans, transmissions and differential drain plug threads.

- Best value for money

- ORO products are a high quality replacement part and Carries our guarantee of your satisfaction.

- Please check the image before ordering to avoid mistakes.

- Easy to install but if unsure please use a professional

Part No. 00-0157.20M [Distributed by oro2u.com]
