NLA .... USE 56-987.R CONNECTING ROD KIT 86-05 XR250, HONDA 13000-KCE-670 13201-KT1-000, 13201-KT1-000
SKU
56-987.DR
Retail Price
£77.80
£64.83
Trade Only: Please login or Click here to find a dealer
Out of stock
Connecting Rod for off-road applications. Alt/OEM: 13000-KCE-670,13201-KT1-000,56-987.R,8130. SKU: 56-987.DR.
PRODUCT INFORMATION
| Weight | 0.668 kg |
|---|---|
| Brand | Psychic |
| Product Type | Connecting Rod |
| Product Group | Crankshafts & Parts |
| Alternate SKU's | 13000-KCE-670, 13201-KT1-000, 56-987.R, 8130 |
VEHICLE FITMENT
DESCRIPTION
HONDA
XR250 1986-2005,
XR250 / XLR250R,

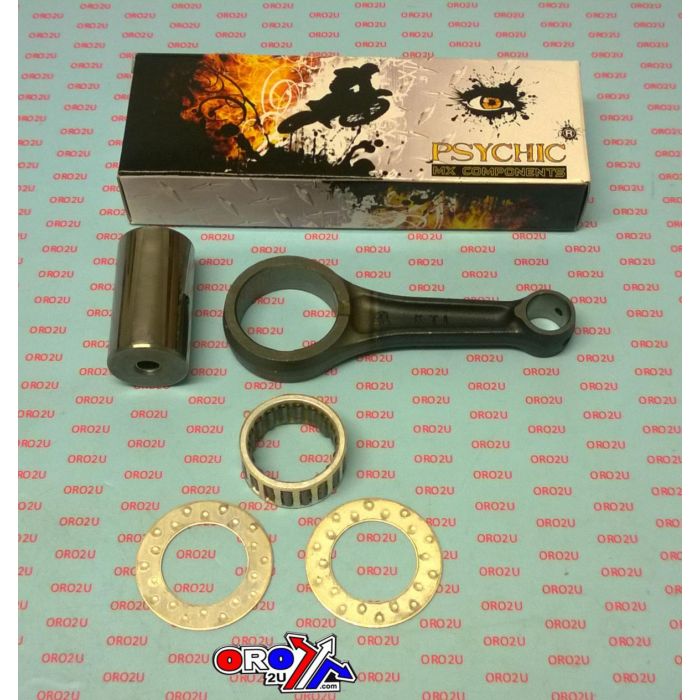

CONNECTING CONROD ROD REBUILD KIT.
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- ORO Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 105 |
| Small End Bearing | 17x20x16.8 |
| Small End Bore Ø | 20 |
| Small End Width | 18 |
| Big End Bearing | 32x41x17.8 |
| Big End Bore Ø | 41 |
| Big End Width | 18 |
| Big End Pin Ø | 32 |
| Big End Pin Length | 58 |
| Washer Thickness | 1.00 |
Part No. 56-987.DR (oro2u.com)
Cross reference numbers ONLY.
13201-KT1-000, RH-1026, 13000-KCE-670 PSYCYIC MX-09006
Constant development to stay on top of bikes for todays riders, keeping them on track
