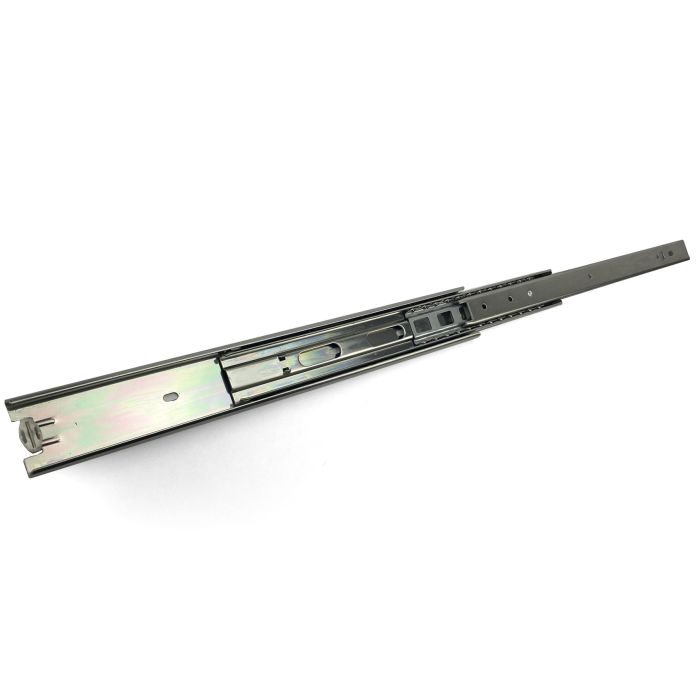

HEAVY DUTY STEEL BALL BEARING DRAWER RUNNERS SELF-LOCKING 350–690mm

A heavy-duty steel ball bearing drawer runner designed for reliable, smooth operation. It features caged ball bearings, a hold-closed self-locking mechanism, and adjustable mounting to suit precise installations. Closed length is 350 mm, extending to 690 mm, with a 45 mm runner height and a 45 kg load rating per set of runners.

Features

• Heavy-duty steel construction
• Caged ball bearings for smooth sliding
• Self-locking mechanism to keep drawers closed
• Extends from 350 mm (closed) to 690 mm (open)
• 4 mm mounting holes with 6 mm of adjustment
• Runner height 45 mm
• Rated for 45 kg per set of runners
• Quick Release for easy drawer removal

Specifications

• Material: Steel
• Bearing type: Caged ball bearings
• Closed length: 350 mm
• Fully extended length: 690 mm
• Extension travel: 340 mm
• Runner height: 45 mm
• Mounting holes: 4 mm diameter with 6 mm adjustment
• Load rating: 45 kg per set of runners
• Mechanism: Self-locking (hold-closed)
