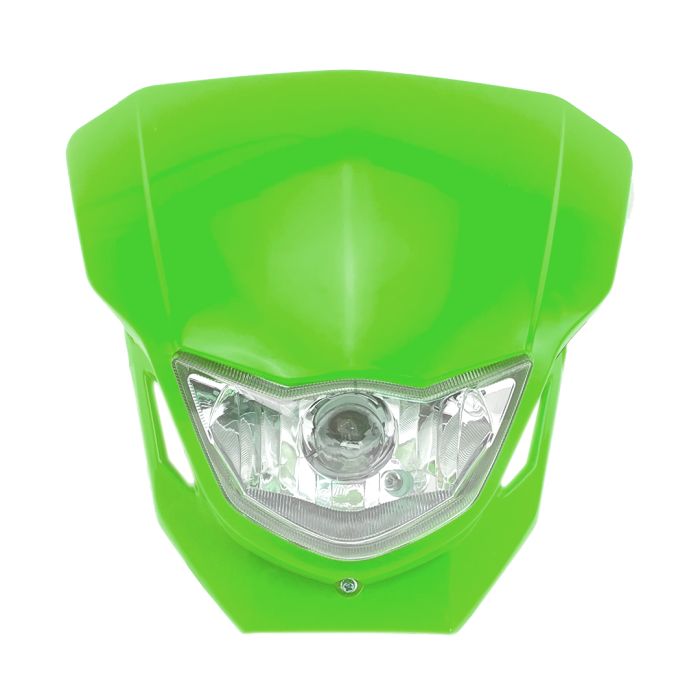

HEADLIGHT UNIVERSAL DIRT HX HL021 GREEN

A universal-fit green headlight and front number plate assembly (part no. 75-127.GN) for off-road use, E-marked and equipped with main/dip beams and a separate side/position light. The unit allows front-access height adjustment and connects via a 4-pin female square socket. Rubber fitting straps are required but not included.

Features

• E-marked headlight unit
• Universal fit front number plate and lamp assembly
• Front-access height adjustment
• Separate side/position light included
• Rubber fitting strap kit not included
• Green colour

Specifications

• Headlight bulb: Bosch BA20D, 12 V, 35/35 W
• Beam functions: main beam and dipped beam
• Electrical connector: 4-pin female square socket
• Wire colour code – Green: ground/earth
• Wire colour code – Blue: main beam
• Wire colour code – White: dipped beam
• Wire colour code – Brown: side/position light
• Number plate size: 330 mm wide × 180 mm deep
