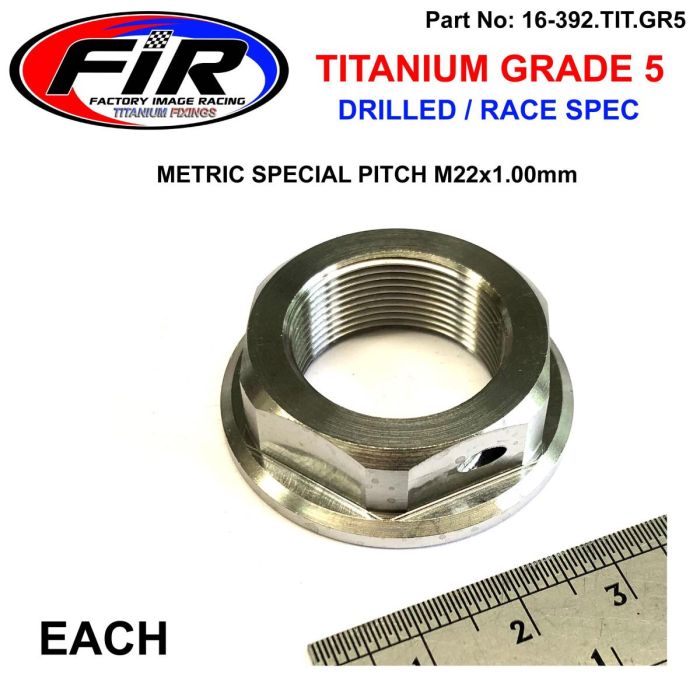

GR5 M22x1.00mm STEM NUT EACH, TITANIUM / KX KLX KDX CR RM, / CNC

Factory Image Racing - Giving your machine the Factory look!

Titanium Grade 5

Specifications:

• Material: Grade 5 (6Al/4V) Titanium
• Pitch: M22x1.00mm
• Outer Diameter Size: 36.90mm
• Overall Height: 11.20mm
• Head Hex Size: 30mm spanner
• Flange Surface Area: Smooth / Flush
• Pack Quantity: 1
• Note: No need to use a washer under this flange nut!

Description: The titanium bolts are Grade 5, which is the best grade to use. It's the alpha grade of titanium and more expensive than other grades used in the motorcycle market. All FIR fixings are made from Grade 5 for superior strength and durability.

OEM Reference Number:

• 92015-1653

Fitment List:

Honda:

• CRF50F (2004 - 2015)
• CRF70F (2004 - 2012)
• XR50R/70R (2000 - 2003)

Kawasaki:

• KX65 (2000 - 2014)
• KX80/85/100 (1998 - 2014)
• KLX110 (2002 - 2012)
• KX125/250 (1988 - 1991)
• KLX140 (2000 - 2014)
• KDX200 (1989 - 1994)
• KLX250/D-Tracker/X (1998 - 2013)
• KX500 (1988 - 2004)

Suzuki:

• RM80/85 (1986 - 2012)
