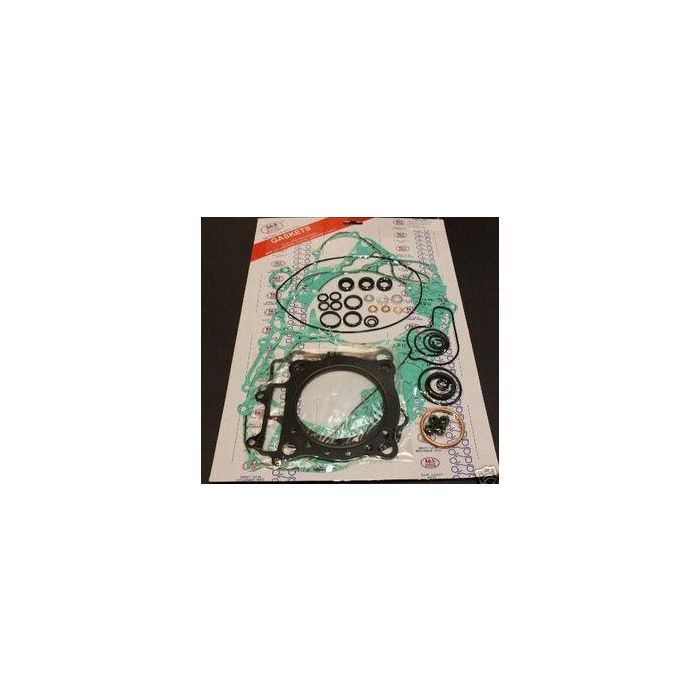

GASKET FULL SET 04-05 TRX450R, K&S 70-1047

K&S 70-1047 is a complete engine gasket set for Honda TRX450R models from 2004 to 2005. It is used during full engine rebuild work and supplies the gaskets, O-rings, seals and washers required for top-end and bottom-end engine assembly.

Features

• Direct replacement gasket set for full engine rebuild work
• Includes components for both top-end and bottom-end engine assembly
• Supplied with gaskets, O-rings, seals and washers

Specifications

• Thermostat cover O-ring: 45.5 x 2.5 mm
• Water pass collar O-ring, right crankcase cover: 17.8 x 2.4 mm
• Cap O-ring, right crankcase cover: 27 x 2 mm
• Oil filler cap O-rings, crankcase cover: 18 x 3 mm
• Oil filter cover O-ring, left crankcase cover: 39.8 x 2.2 mm
• Cap O-ring, left crankcase cover: 13.8 x 2.5 mm
• Relief valve assembly O-ring, left crankcase cover: 8.5 x 1.7 mm
• Joint breather O-ring: 10 x 2 mm

Kit Contents

• 1 x Cylinder head gasket
• 1 x Cylinder base gasket
• 1 x Crankcase gasket
• 1 x Right crankcase cover gasket
• 1 x Left crankcase cover gasket
• 1 x Water pump gasket
• 1 x Tensioner hole gasket
• 1 x Exhaust pipe gasket
• 4 x Valve stem seals
• 1 x Cylinder seal ring
• 3 x Cylinder seal rings
• 1 x Thermostat cover O-ring
• 1 x Clutch cover O-ring
• 1 x Water pass collar O-ring, right crankcase cover
• 1 x Cap O-ring, right crankcase cover
• 2 x Oil filler cap O-rings, crankcase cover
• 1 x Oil filter cover O-ring, left crankcase cover
• 1 x Cap O-ring, left crankcase cover
• 1 x Relief valve assembly O-ring, left crankcase cover
• 1 x Joint breather O-ring
• 1 x Transmission component

Cross-Reference OEM Part Numbers

• K&S 70-1047
• 28-631.KS
• 28-632.DR

Vehicle Fitments

• Honda TRX450R, 2004-2005
