DF52-136 FUEL PUMP 31LH, 07-188, 0636-640, 403-8007-00, JET SKI, PWC FUEL PUMP

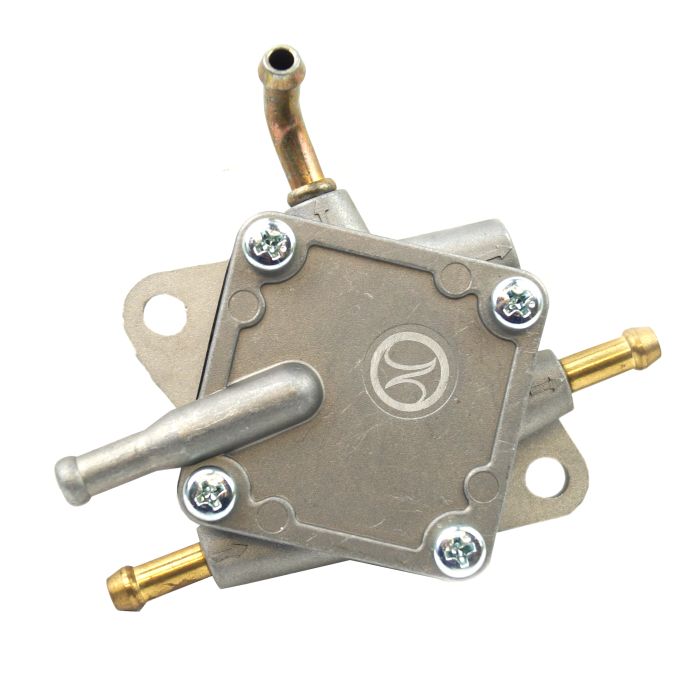

A dual-outlet, square-body vacuum pulse fuel pump delivering approximately 31 litres/hour, suitable for powersports applications and commonly fitted to Arctic Cat and Ski-Doo snowmobiles. Cross-references include Mikuni DF52-136 and aftermarket reference 07-188.

Features

• Vacuum pulse-operated design for consistent fuel delivery without electrics
• Square-body pump with dual outlets for twin carburettors
• 90° inlet orientation to aid compact installation
• Flush-mount design with two-bolt fixing
• Hose tails sized for 6 mm ID fuel line
• Approximate flow capacity of 31 litres/hour

Specifications

• Flow rate: 31 litres/hour (approx.)
• Inlet: 90° barb, suits 6 mm ID hose
• Outlets: Dual barbs, suit 6 mm ID hose
• Mounting: 2 x 6.5 mm holes, 70 mm centres
• Operation: Vacuum pulse (non-electric)
• Form factor: Square

Cross-Reference OEM Part Numbers

• Mikuni: DF52-136 / DF-52-136
• Aftermarket reference: 07-188
• Arctic Cat: 0636-640
• Ski-Doo/Bombardier: 403-8007-00 / 403800700

Vehicle Fitments

• Arctic Cat snowmobiles (selection): Prowler (1992–1993, including 2 Up and Mountain Cat), Cougar (1992–1994, including Mountain Cat), Cheetah/Cheetah Touring (1992–1993), EXT Special 550 (1992), Jag Special/AFS/Super Jag (1991–1993), Pantera 440 (1992)
• Ski-Doo snowmobiles (selection): Formula Plus/Plus E/Plus X/Plus XTC/XTC E/XTC II (1991–1993), Formula MX/MX II (1992–1993), Formula Mach 1/Mach 1 X/XTC (1991–1994), Formula Grand Touring (1993), Grand Touring 580/580 XTC/670 SE (1994), Safari L/LE/LX/LXE (1991–1993)
