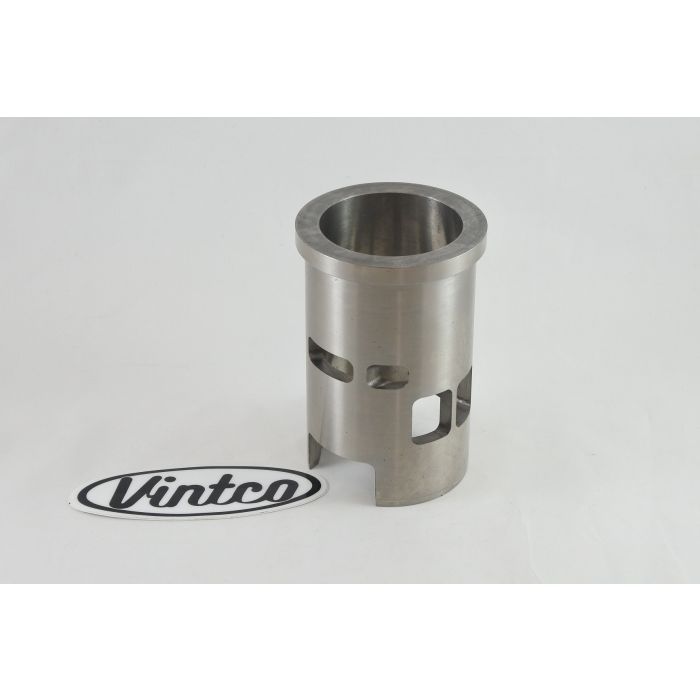

CYLINDER SLEEVE 72-74 HUSQVARNA CR SC WR 125 55mm VINTCO SLU06A

This cast-iron cylinder sleeve is a replacement insert for vintage Husqvarna 125 models where complete replacement cylinders can be difficult to source. Manufactured in the USA for VintCo by Advanced Sleeve, it is produced using modern materials and manufacturing methods for OEM-level or better fit and performance. It is designed for installation by an experienced, qualified machinist, with correctly angled ports to reduce port-matching work, and it can be bored and honed to suit the stock-size VintCo piston kit.

Features

• Replacement cylinder sleeve for vintage Husqvarna 125 models
• Fits 1972-1973 CR125 and WR125 models, and 1974 SC125 models
• Intended for professional installation by an experienced, qualified machinist
• Correctly angled ports reduce required port-matching work
• Can be bored and honed to suit the stock-size VintCo piston kit

Specifications

• VintCo Part Number: SLU06A
• Piston Part Number: PSU06-00
• Material: Cast iron
• Manufactured in the USA
• Made for VintCo by Advanced Sleeve
• Bore: 55 mm
• Height: 106.8 mm
• Outside Diameter: 65.2 mm
• Flange Outside Diameter: 72.1 mm
• Flange Height: 7.5 mm
• Wall Thickness: 5.6 mm
• Intake: 20.7 mm
• Exhaust Port Location: 30.4 mm

Vehicle Fitments

• 1972 Husqvarna CR125
• 1972 Husqvarna WR125
• 1973 Husqvarna CR125
• 1973 Husqvarna WR125
• 1974 Husqvarna SC125
