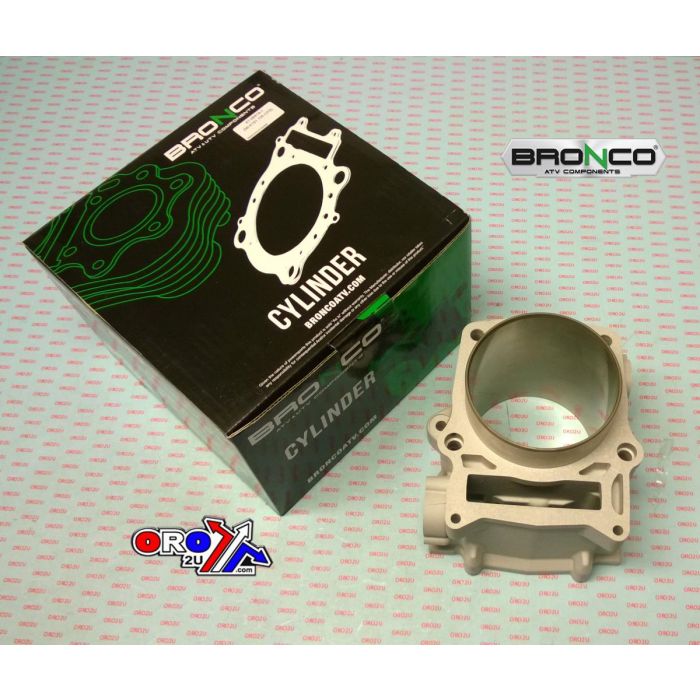

CYLINDER ONLY 2006-2015 YAMAHA YFM700 GRIZZLY PSYCHIC AT-09474-1 CA-40002-BB3

Big-bore cylinder in 105 mm size engineered as a direct-replacement component, increasing displacement to approximately 727 cc when used with the stock stroke. Supplied as a bare cylinder for service builds where existing pistons and gaskets are sourced separately.

Features

• Big-bore 105 mm size (+3.00 mm over standard)
• Increases displacement to approximately 727 cc with stock stroke
• Designed for the specific engine platforms listed
• Supplied as cylinder only (piston, rings and gaskets not included)

Specifications

• Bore: 105 mm
• Oversize: +3.00 mm over standard 102 mm
• Approximate displacement with 84 mm stroke: 727 cc
• Brand/reference: Psychic
• Product type: Cylinder only
• Approximate weight: 2.78 kg
• Application: 700 cc single-cylinder ATV/UTV engine

Cross-Reference OEM Part Numbers

• Psychic AT-09474-1
• Psychic CA-40002-BB3

Vehicle Fitments

• Yamaha YFM700 Grizzly 2007–2015
• Yamaha YXR700 Rhino 2008–2013
• Yamaha YXC700 Viking 2014–2017
