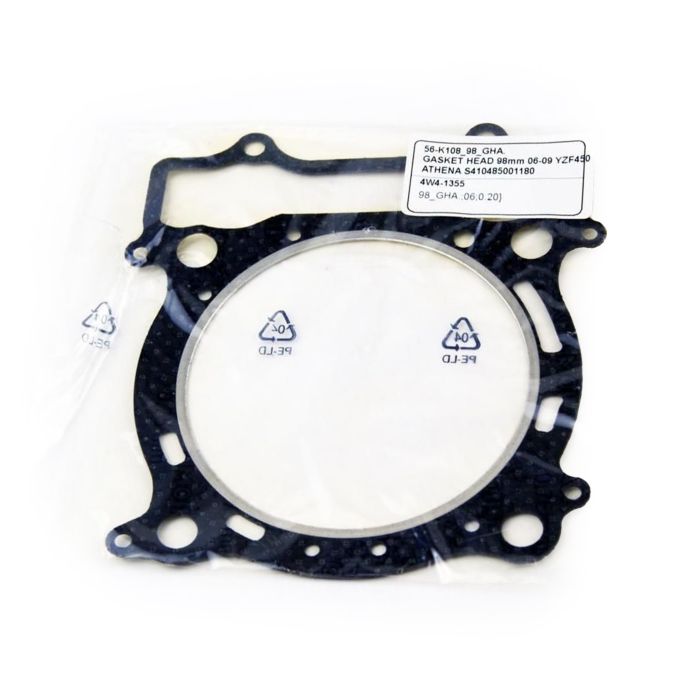

CYLINDER HEAD GASKET 98MM YAMAHA YFZ/YZ 450 03-11, ATHENA S410485001180 FOR 480CC BIG BORE KIT

SKU
56-K108_98_GHA.
Retail Price £56.65 £47.21 Trade Only: Please login or Click here to find a dealer
check 2 In stock

PRODUCT INFORMATION

More Information
Brand Athena
Size 98mm
Product Type Gasket - Head
Product Group Engine
Catalogue ATV, DIRT

VEHICLE FITMENT

DESCRIPTION

ATHENA Cylinder Head Gasket Ø 98,2 mm and thickness 0,75 mm - S410485001180

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

  • Gasket Bore Diameter (mm) 98.20
  • Net Weight (Kg) 0.05
  • Thickness (mm) 0.75

Vehicle compatibility

  • YAMAHA YFZ S 450 cc 2004/2011
  • YAMAHA YZ F 450 cc 2003/2005

Part No. 56-K108_98_GHA. (oro2u.com)
