CYLINDER & HEAD 47.00mm HONDA 1970 - 2009 TRX CRF XR CT 70
SKU
56-K220.KIT.H
Retail Price
£76.50
£63.75
Trade Only: Please login or Click here to find a dealer
26 In stock
Cylinders & Heads for off-road applications. Alt/OEM: 56-K220.CYL,12191-GW8-681,12101-GB0-910,12191-GW8-683,12191-GW8-682,13011-GCF-A20,12251-GB5-811,13111-GB0-910,13101-GCF-A20,94601-13000,13115-001-000,12200-GT0-751,12200-GB5-931,12237-GB4-305,12245-GB4-305,12209-GB4-681,14100-GK4-000,14431-035-020,14451-0. SKU: 56-K220.KIT.H.
PRODUCT INFORMATION
| Weight | 3.516 kg |
|---|---|
| Brand | Factory Image Racing |
| Product Type | Cylinders & Heads |
| Product Group | Engine |
| Alternate SKU's | 56-K220.CYL, 12191-GW8-681, 12101-GB0-910, 12191-GW8-683, 12191-GW8-682, 13011-GCF-A20, 12251-GB5-811, 13111-GB0-910, 13101-GCF-A20, 94601-13000, 13115-001-000, 12200-GT0-751, 12200-GB5-931, 12237-GB4-305, 12245-GB4-305, 12209-GB4-681, 14100-GK4-000, 14431-035-020, 14451-0 |
VEHICLE FITMENT
DESCRIPTION

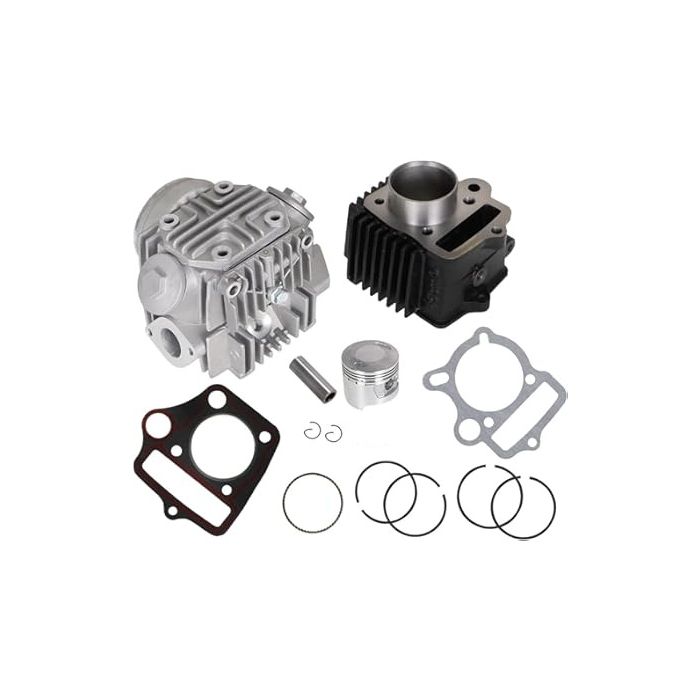

This complete top end rebuild kit is designed for Honda 70cc engines and includes all key components needed for a comprehensive overhaul. The kit contains a 47mm piston, rings, pin, cylinder, cylinder head, camshaft, valves, and gaskets. It is engineered for compatibility with multiple Honda models across several decades, ensuring restoration of performance to OEM specifications.
Features
- Includes piston (47mm), rings, pin, cylinder, cylinder head, gaskets, camshaft, and valves
- Direct OEM replacement
- Manufactured to meet or exceed OEM standards
- High-quality materials ensure durability and reliability
- Easy installation with professional support recommended if needed
Specifications
- Piston Bore: 47mm
- Full Top End Rebuild Kit
- Part No: 56-K220.KIT.H
Cross-Reference OEM Part Numbers
- Piston Clip: 94601-13000
- Cylinder: 12101-GB0-910
- Cylinder Gasket: 12191-GW8-681, 12191-GW8-682, 12191-GW8-683
- Cylinder Head Gasket: 12251-GB5-811
- Piston Ring Set (RIKEN): 13011-GCF-A20
- Piston (ART): 13101-GCF-A20
- Piston Pin: 13111-GB0-910
- Camshaft: 14100-GK4-000
- Cylinder Head: 12200-GB5-931, 12200-GT0-751
- Valve Guide (Inlet, Oversize): 12237-GB4-305
- Valve Guide (Exhaust, Oversize): 12245-GB4-305
- Valve Stem Seal: 12209-GB4-681
- Valve Rocker Arm: 14431-035-020
- Rocker Arm Shaft: 14451-035-000
- Inlet Valve: 14711-GN5-913
- Exhaust Valve: 14721-GF6-010
- Valve Spring (Outer, Nippon Hatsujo): 14751-GE0-003, 14751-GK4-761
- Valve Spring (Outer, Chuo Hatsujo): 14751-GE0-004, 14751-GK4-762
- Valve Spring (Inner, NHK Spring): 14761-GE0-003, 14761-GE0-004
- Valve Spring (Inner, Chuo Spring): 14761-GE0-004
- Valve Spring Retainer: 14771-GB4-680
- Valve Spring Seat (Outer): 14775-MA6-000
- Valve Cotter: 14781-MA6-000
- Tappet Adjusting Screw: 90012-333-000
- Tappet Adjusting Nut: 90206-001-000
Vehicle Fitments
- 1983 Honda C70 Passport
- 1982 Honda C70 Passport
- 1979 Honda C70 Passport
- 1978 Honda C70 Passport
- 1977 Honda C70 Passport
- 1976 Honda C70 Passport
- 1975 Honda C70 Passport
- 1974 Honda C70 Passport
- 1973 Honda C70
- 1972 Honda C70
- 1971 Honda C70
- 1970 Honda C70 Passport
- 1973 Honda CL70 Scrambler
- 1972 Honda CL70 Scrambler
- 1971 Honda CL70 Scrambler
- 1970 Honda CL70 Scrambler
- 1969 Honda CL70 Scrambler
- 1971 Honda CM70
- 2011 Honda CRF70F
- 2009 Honda CRF70F
- 2008 Honda CRF70F
