CYLINDER FULL KIT 94MM SUZUKI DR-Z/LT-Z/KFX 400 00-19, ATHENA P400510100002 435CC BIG BORE, (piston included)

ATHENA Big Bore Cylinder Kit Ø 94 mm, 435 cc - P400510100002

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

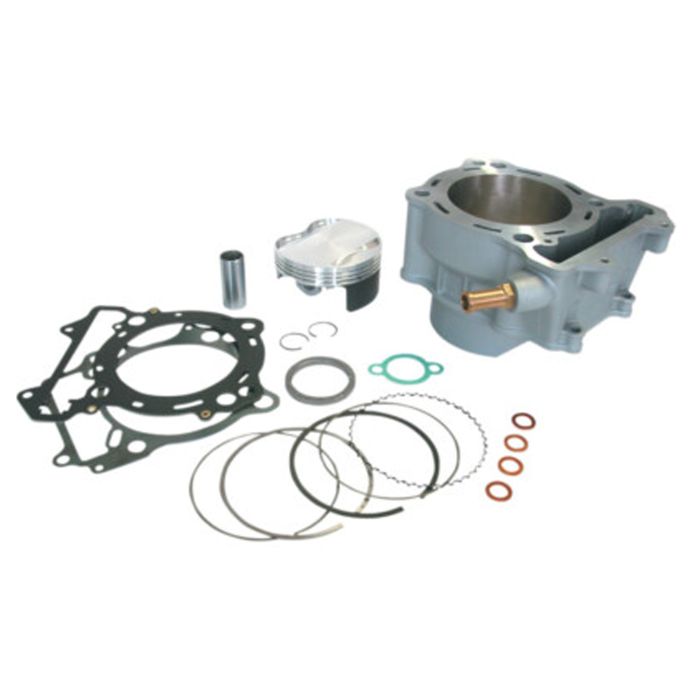

The kit includes the high-quality aluminum cylinder with increased bore, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

• Bore Diameter (mm) 94.00
• Compression Ratio 12.3:1
• Displacement (cc) 435
• Net Weight (Kg) 2.38

Partner Cross Reference code

• P400510160002 Gaskets Kit
• S4F09400002A Piston Kit 93,94
• S4F09400002B Piston Kit 93,95
• S41316119 Rings
• S41317007 Piston Pin

Vehicle compatibility

• ARCTIC CAT DVX 400 cc 2004/2008
• KAWASAKI KFX 400 cc 2003/2006
• KAWASAKI KFX SPORT 400 cc 2003/2006
• KAWASAKI KLX 400 cc 2003/2006
• SUZUKI DR-Z 400 cc 2000/2017
• SUZUKI DR-Z 400 cc 2019
• SUZUKI LT-Z QUADSPORT 400 cc 2003/2014

Part No. 56-K112.94.CKA (oro2u.com)
