CYLINDER FULL KIT 63MM YAMAHA N-MAX 150 15-16, ATHENA P400485100057 182CC BIG BORE, (Piston included)

SKU
56-K185.63.CKA
Retail Price £325.22 £271.02 Trade Only: Please login or Click here to find a dealer
check 1 In stock

PRODUCT INFORMATION

More Information
Brand Athena
Size 63mm
Product Type Cylinder Kits
Product Group Engine
Alternate SKU's P400485160194, S41316168, S4C06300004A, S4C06300004B
Catalogue ROAD

VEHICLE FITMENT

DESCRIPTION

ATHENA Big Bore Cylinder Kit Ø 63 mm, 182 cc - P400485100057 (Includes Piston)

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

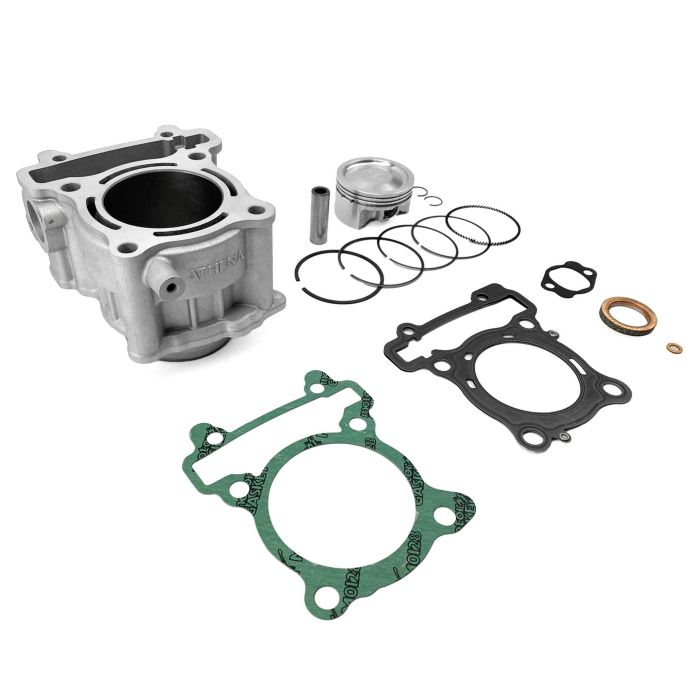

The kit includes the high-quality aluminum cylinder with increased bore, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

  • Bore Diameter (mm) 63.00
  • Displacement (cc) 182
  • Net Weight (Kg) 2.50

Partner Cross Reference code and Optional Parts

  • S4C06300004A Cast-lite Piston ø 62,96
  • S4C06300004B Cast-lite Piston ø 62,97
  • P400485160194 Gaskets Kit For Athena Cylinder Kit
  • S41316168 Rings

Vehicle compatibility

  • YAMAHA N-MAX 150 cc 2015/2016

Part No. 56-K185.63.CKA (oro2u.com)
