CYLINDER FULL KIT 57MM KLX 110/DR-Z 110 03-09, ATHENA P400250100005 130CC BIG BORE, (piston included)
PRODUCT INFORMATION
Brand | Athena |
---|---|
Product Type | Cylinder Kits |
Product Group | Engine |
Alternate SKU's | P400250160005, S41316139, S4C05700001A, S4C05700001B |
Catalogue | DIRT |
VEHICLE FITMENT
DESCRIPTION
ATHENA Big Bore Cylinder Kit Ø 57 mm, 130 cc - P400250100005 (Piston Included)
Description
Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.
Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.
Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

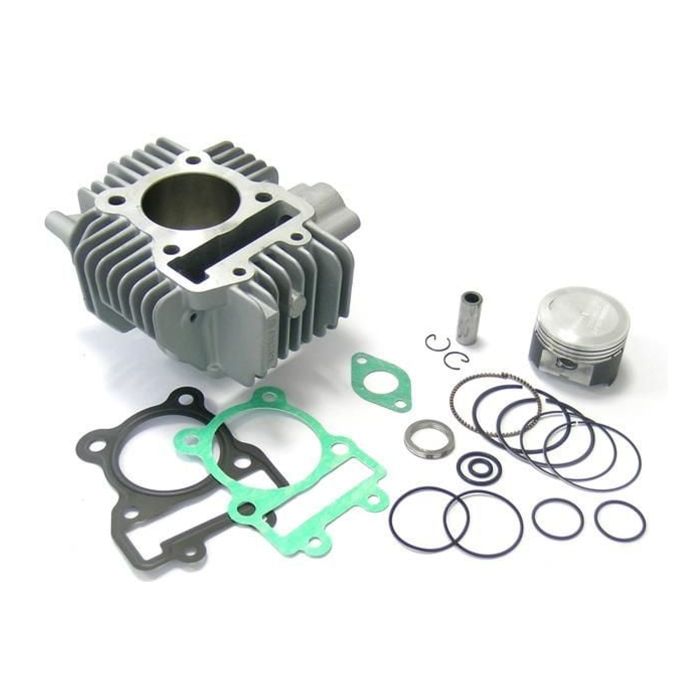

The kit includes the high-quality aluminum cylinder with increased bore, the complete piston with the piston pin and rings, and all the necessary gaskets.
All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.
This cylinder kit can be installed without making any changes to the engine crankcase.
CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.
Technical features
- Bore Diameter (mm) 57.00
- Compression Ratio 11.3:1
- Displacement (cc) 130
- Net Weight (Kg) 2.50
Partner Cross Reference code
- S4C05700001A Piston Kit 56,95
- S4C05700001B Piston Kit 56,96
- P400250160005 Gaskets Kit
- S41316139 Rings
Vehicle compatibility
- KAWASAKI KLX 110 cc 2003/2009
- SUZUKI DR-Z 110 cc 2003/2005
Part No. 56-K121.57.KIT (oro2u.com)
