CONNECTING ROD TRX500FE, NAMURA RA-10009 Honda ATV, BIG END PIN 34 x 63.5mm

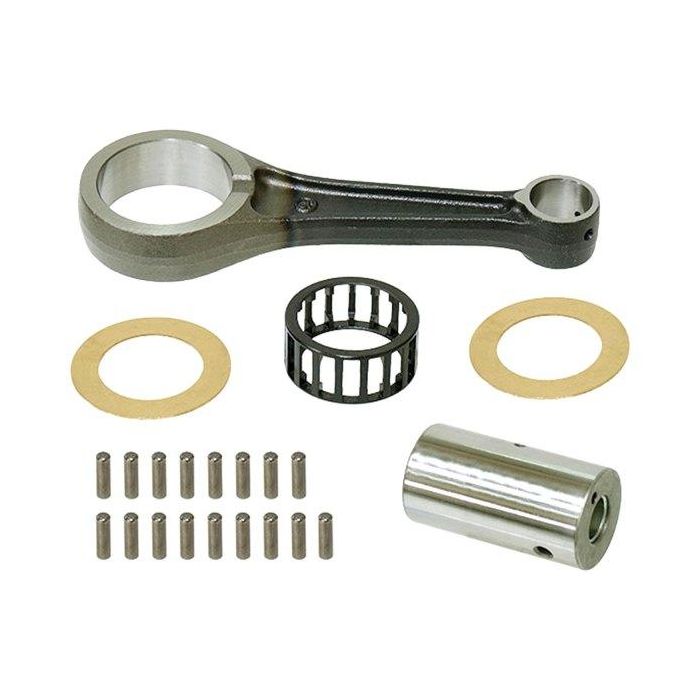

Heavy-duty replacement connecting rod kit for Honda TRX500 Foreman models, offering superior strength and durability. The rod is constructed from certified chrome alloy steel (SNCM220) for exceptional performance, with crankpins made from hot-rolled ASTM steel and case-hardened for reliability. Features the latest caged needle roller bearing designs for improved longevity at high RPMs. Thrust washers are silver-coated and made from bronze phosphor for enhanced lubrication and durability. This complete assembly is compatible with OE and aftermarket crankshafts, including rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Features:

• Certified chrome alloy steel (SNCM220) for maximum strength.
• Case-hardened crankpins made from hot-rolled ASTM steel.
• Advanced caged needle roller bearings for high RPM durability.
• Bronze phosphor thrust washers with silver coating for added lubricity.
• Fully compatible with OE and aftermarket crankshafts.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.

Specifications:

• Center-to-Center Length: 129.50 mm
• Small End Bore Diameter: 20 mm
• Small End Width: 20 mm
• Big End Bearing: 34x44x19.80 mm
• Big End Bore Diameter: 44 mm
• Big End Width: 20 mm
• Big End Pin Diameter: 34 mm
• Big End Pin Length: 63.50 mm
• Washer Thickness: 34x53x1.00 mm

Cross-Reference OEM Part Numbers:

• VESRAH VA-1021
• HOTRODS 8699
• Fits Crankshaft: 13000-HP0-A00
• AT-09410-1

Vehicle Compatibility:

• 2005-2011 Honda TRX500FE Fourtrax Foreman ES 4x4
• 2005-2008 Honda TRX500FM Fourtrax Foreman 4x4
• 2005-2006 Honda TRX500TM Fourtrax Foreman
• 2007-2011 Honda TRX500FPE Foreman ES
• 2008-2011 Honda TRX500FPM Foreman

Part Number: 56-8971.NM
