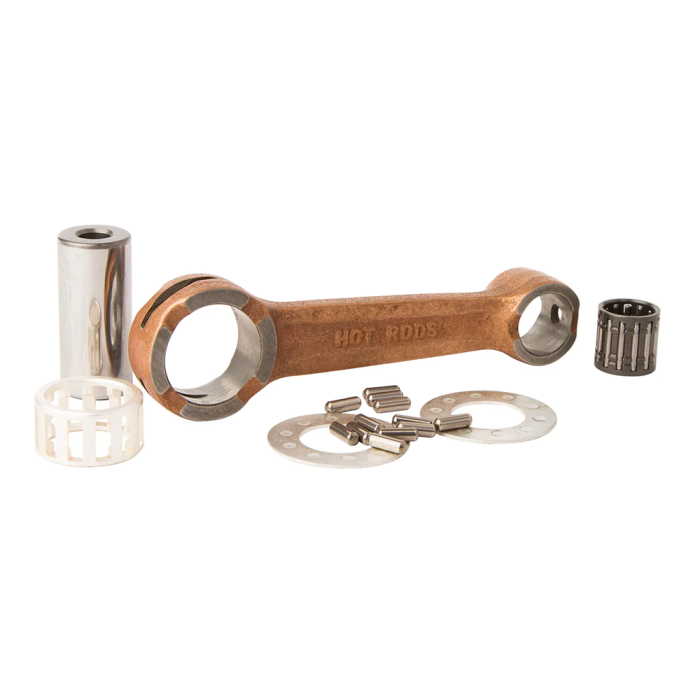

CONNECTING ROD KTM SX50 01-18, HOTROD 8135

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Uniquely designed big end uses strategically located side scalloping vent slots to minimize high rpm bearing race distortion
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
• Hot Rods uses the latest in caged needle roller bearing designs for high rpm longevity
• Thrust washers are manufactured from bronze phosphor and are silver coated
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in the U.S.A.

  Included Items:
  (1) Connecting rod with bearing
  (1) Crank pin
  (15) Needle bearing rollers
  (1) Needle cage
  (2) Thrust washers
  Instructions

Technical Specifications:

Big End Bearing (mm):

Big End Bore (mm):22.00

Big End Width (mm):.00

Center To Center (mm):85.00

Pin Diameter (mm):16.00

Pin Length (mm):36.00

Small End Bearing (mm):

Small End Bore (mm):15.00

Small End Width (mm):.00

Washer Thickness (mm):0.85000000

Husqvarna

• 2018 Husqvarna TC50
• 2017 Husqvarna TC50

 KTM

• 2018 KTM 50 SX
• 2017 KTM 50 SX
• 2016 KTM 50 SX
• 2015 KTM 50 SX
• 2014 KTM 50 SX
• 2013 KTM 50 SX
• 2012 KTM 50 SX
• 2011 KTM 50 SX
• 2010 KTM 50 SX
• 2009 KTM 50 SX
• 2017 KTM 50 SX Mini
• 2016 KTM 50 SX Mini
• 2015 KTM 50 SX Mini
• 2014 KTM 50 SX Mini
