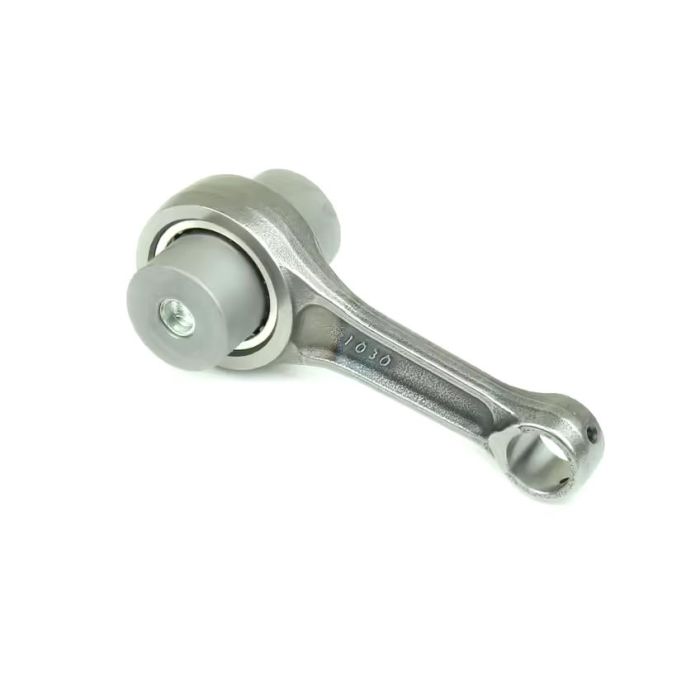

CONNECTING ROD KIT SUZUKI RM-Z 450 05-25, ATHENA P40321030

ATHENA Connecting Rod Offroad Kit - P40321030

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 42.00
• Big End Pin Diameter (mm) 34.00
• Big End Width (mm) 20.00
• Center To Center (mm) 106.15
• Net Weight (Kg) 0.71
• Piston Pin Diameter (mm) 19.00
• Small End Width (mm) 18.50

Partner Cross Reference code

• 12210-10H10
• 12210-10H11
• 09263-30060-0B0
• 12161-49H00-0B0
• HR008661
• HOTRODS 8661
• PROX 03.3405
• PSYCHIC MX-09016

Vehicle compatibility

• SUZUKI RM-Z 450 cc 2005/2007
• SUZUKI RM-Z 450 cc 2013/2025

Part No. 56-136.ATH (oro2u.com)
