CONNECTING ROD KIT 98-19 KX80/85/100, NAMURA RX-20003, MX-09028 KAWASAKI

CONNECTING ROD CONROD REBUILD KIT
KAWASAKI
KX80 1998-2000,
KX85 2001-2019,
KX100 1998-2019,
SUZUKI
RM100 2003,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

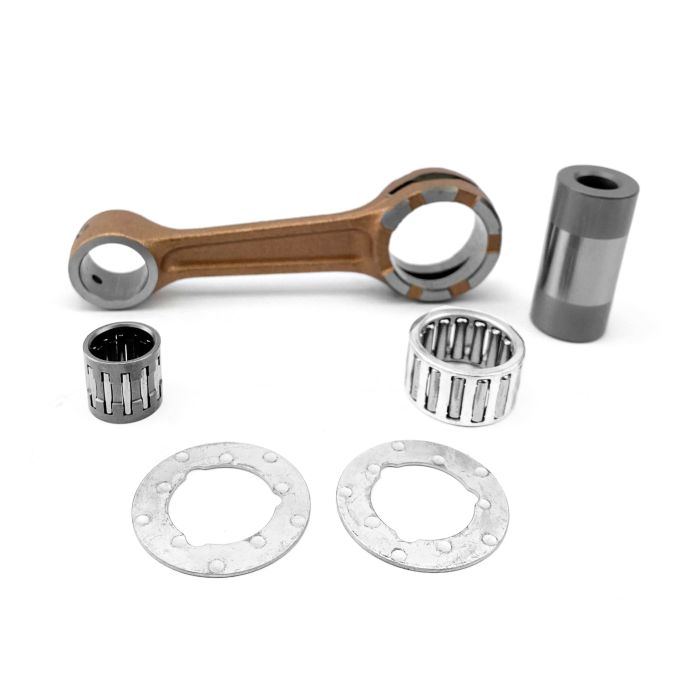

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE

MM

Centre 2 Centre

92

Small End Bearing

14x18x17.20

Small End Bore Ø

18

Small End Width

16.00

Big End Bearing

22x29x15.8

Big End Bore Ø

29

Big End Width

16.00

Big End Pin Ø

22

Big End Pin Length

46.00

Washer Thickness

37x22x1.00

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 92, B = 14, C = 22, D = 16, E = 16, F = 46

Part No. 56-878.DR (oro2u.com)

Cross reference numbers.
RK-5202, KAWASAKI: 13032-1230 SUZUKI: K1303-21230, HotRod 8147, 13032-1230, PSYCHIC MX-09028, PROX 03.4118, WOSSNER P2005, HOTRODS 8147, WISECO WPR171,

Kawasaki
2019 Kawasaki KX100
2018 Kawasaki KX100
2017 Kawasaki KX100
2016 Kawasaki KX100
2015 Kawasaki KX100
2014 Kawasaki KX100
2013 Kawasaki KX100
2012 Kawasaki KX100
2011 Kawasaki KX100
2009 Kawasaki KX100
2008 Kawasaki KX100
2007 Kawasaki KX100
2006 Kawasaki KX100
2005 Kawasaki KX100
2004 Kawasaki KX100
2003 Kawasaki KX100
2002 Kawasaki KX100
2001 Kawasaki KX100
2000 Kawasaki KX100
1999 Kawasaki KX100
1998 Kawasaki KX100
2009 Kawasaki KX100 Monster Energy
2000 Kawasaki KX80
1999 Kawasaki KX80
1998 Kawasaki KX80
2019 Kawasaki KX85
2018 Kawasaki KX85
2017 Kawasaki KX85
2016 Kawasaki KX85
2015 Kawasaki KX85
2014 Kawasaki KX85
2013 Kawasaki KX85
2012 Kawasaki KX85
2011 Kawasaki KX85
2010 Kawasaki KX85
2009 Kawasaki KX85
2008 Kawasaki KX85
2007 Kawasaki KX85
2006 Kawasaki KX85
2005 Kawasaki KX85
2004 Kawasaki KX85
2003 Kawasaki KX85
2002 Kawasaki KX85
2001 Kawasaki KX85
2009 Kawasaki KX85
 Suzuki
2003 Suzuki RM100
