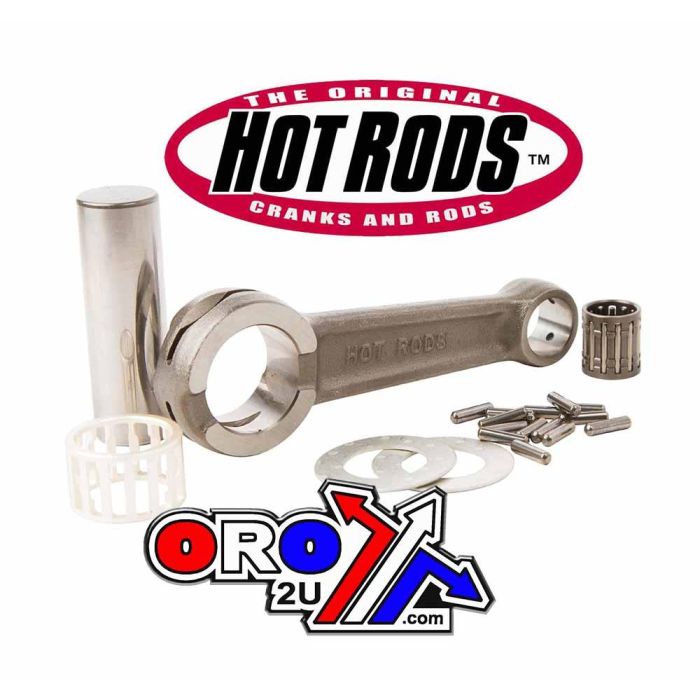

CONNECTING ROD 97-02 KTM60/65, HOTROD 8625

• Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers
• High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
• Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
• Rods are double-forged to improve grain flow and maintain dimensional consistency
• Rods are also shot-peened and double-honed for superior strength under heavy loads
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Thrust washers and crank pin bearings are silver-coated for added lubricity

Cross Reference Numbers Only:
KTM: 46030015000

Technical Specifications:

Big End Bearing (mm):

Big End Bore (mm):24.00

Big End Width (mm):.00

Center To Center (mm):88.00

Pin Diameter (mm):18.00

Pin Length (mm):56.00

Small End Bearing (mm):

Small End Bore (mm):15.00

Small End Width (mm):.00

Washer Thickness (mm):1.00000000
