CONNECTING ROD 87-01 CR500, PSYSHIC MX-09007 HONDA MX

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09007

HONDA
CR500 1987-2001,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

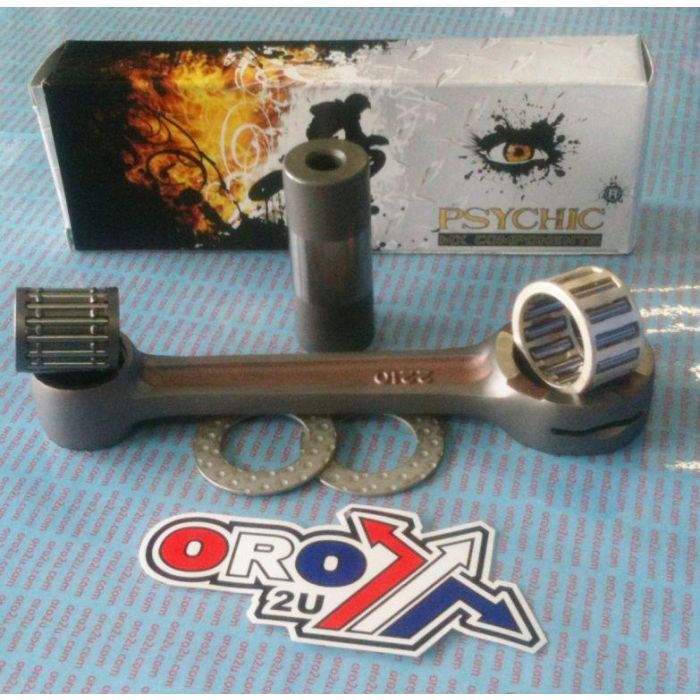

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Rod Center-Center 144mm,
Rod Eyes Width. 24.00/20.00mm,
Big end pin 26x64.75mm
Small End eye Dia 25mm
Small end bearing 20X25X27.8
Big end eye bore 34mm
Washer Thickness (mm): 1.50000000

Part No. 56-155.DR (oro2u.com)

Cross reference numbers ONLY.
13200-ML3-680, CK139, HOTRODS 8139, PROX 03.1406, WOSSNER P2044, 422210, Wiseco CR166, 13200-ML3-305,   13200-ML3-680, 13300-MAC-680, 13300-ML3-910, 13300-ML3-911,
