CONNECTING ROD 85-07 CR80/85, PSYCHIC MX-09000 REPAIR KIT
PRODUCT INFORMATION
Brand | Psychic |
---|---|
Product Type | Connecting Rod |
Product Group | Crankshafts & Parts |
Catalogue | DIRT |
VEHICLE FITMENT
DESCRIPTION
HONDA
CR80 1985-2002,
CR85 2003-2007,
Connecting Conrod rod rebuild kit. PSYCHIC MX-09000
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

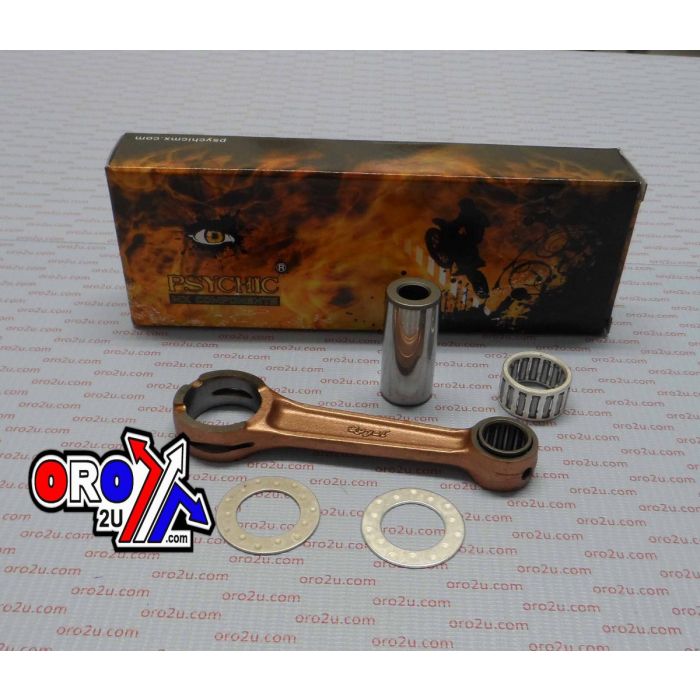

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Designed to handle increased power loads.
- Best value for money
- All are made to OEM specifications and match the original equipment in appearance.
- PSYCHIC products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image before ordering to avoid mistakes.
SIZE | MM |
Centre 2 Centre | 97 |
Small End Bearing | 14x18x15.80 |
Small End Bore Ø | 18 |
Small End Width | 14.20 |
Big End Bearing | 20x26x13.8 |
Big End Bore Ø | 26 |
Big End Width | 14.20 |
Big End Pin Ø | 20 |
Big End Pin Length | 45 |
Washer Thickness | 1.00 |
Part No. 56-889.DR (oro2u.com)
Cross reference numbers ONLY.
HONDA: 13200-GBF-B40 HONDA: 13200-GC4-600 HONDA: 13201-GC4-600, HOTRODS 8125, PROX 03.1105, WOSSNER P2003
Honda
- 2002 Honda CR80R
- 2001 Honda CR80R
- 2000 Honda CR80R
- 1999 Honda CR80R
- 1998 Honda CR80R
- 1997 Honda CR80R
- 1996 Honda CR80R
- 1995 Honda CR80R
- 1994 Honda CR80R
- 1993 Honda CR80R
- 1992 Honda CR80R
- 1991 Honda CR80R
- 1990 Honda CR80R
- 1989 Honda CR80R
- 1988 Honda CR80R
- 1987 Honda CR80R
- 1986 Honda CR80R
- 2006 Honda CR85R
- 2005 Honda CR85R
- 2004 Honda CR85R
- 2003 Honda CR85R
