CONNECTING ROD 82-97 KX80/100, PSYCHIC MX-09027 REPAIR KIT

A durable and high-performance connecting rod rebuild kit designed for Kawasaki KX80, KX100, and KDX80 models. Built with superior materials and precision engineering, this kit is ideal for maintaining or upgrading your engine’s reliability and performance.

Features:

• Heavy-duty OE replacement connecting rod made from certified chrome alloy steel (SNCM220) for superior strength.
• Crankpins manufactured from hot-rolled ASTM steel and case-hardened for durability.
• Utilizes advanced caged needle roller bearing designs for longevity at high RPMs.
• Thrust washers are bronze phosphor with a silver coating for reduced friction.
• Compatible with both aftermarket and OE crankshafts.

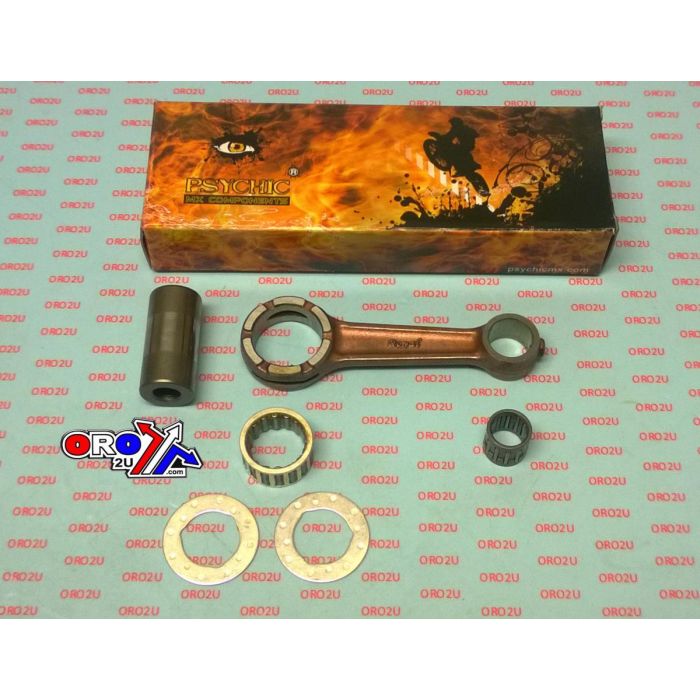

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Center to Center Length: 92 mm
• Small End Bearing Dimensions: 14 x 18 x 17.20 mm
• Small End Bore Diameter: 18 mm
• Small End Width: 16.00 mm
• Big End Bearing Dimensions: 22 x 28 x 15.8 mm
• Big End Bore Diameter: 28 mm
• Big End Width: 16.00 mm
• Big End Pin Diameter: 22 mm
• Big End Pin Length: 46.40 mm
• Washer Dimensions: 22 x 37 x 1 mm

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-1039, 13044-5015, 13044-5031, 13044-5034, 13044-5053
• Hot Rods: 8112
• ProX: 03.4108
• Wossner: P2036

Compatibility:
Fits the following models:

Kawasaki:

• KX80 (1982-1997)
• KX100 (1995-1997)
• KDX80 (1982-1988)

Part Number: 56-118.DR
