CONNECTING ROD 78-08 KX250, HOTROD 8108 KAWASAKI

The Hot Rods connecting rod kit (Part No. 8108) is a premium replacement designed for Kawasaki KX250 and KDX250 models. Engineered for durability and high-RPM performance, this kit provides reliable operation under heavy loads, making it ideal for off-road applications.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior durability.
• Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
• Double-forged rods enhance grain flow and maintain consistent dimensions.
• Shot-peened and double-honed for added strength and reliability.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.

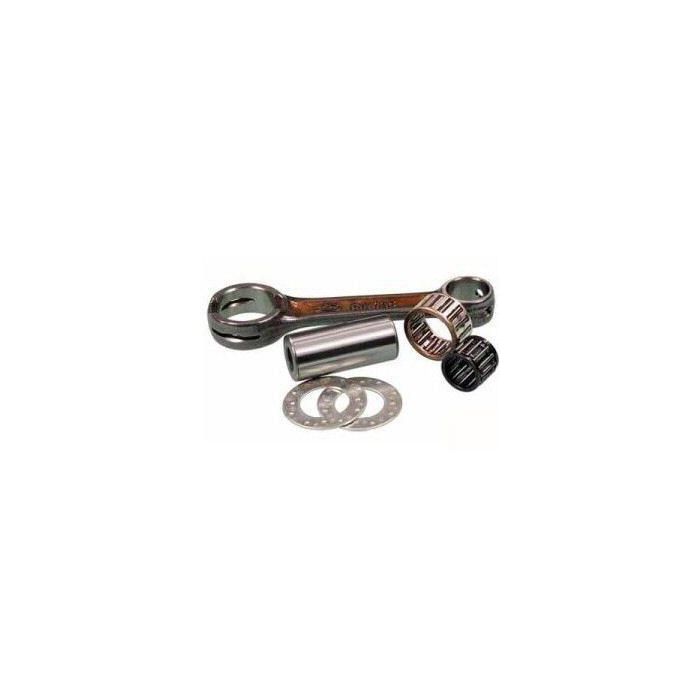

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 125
• B (Big End Bore Diameter): 24
• C (Big End Width): 18
• D (Small End Bore Diameter): 20
• E (Small End Width): 22
• F (Pin Length): 58.5

Vehicle Compatibility:

Kawasaki KDX250:

• 1991–1994

Kawasaki KX250:

• 1978–2009

Cross-reference OEM Part Numbers:

• 13032-1279
• 13044-5056
• Psychic: MX-09033
• ProX: 03.4309
• Wossner: P2022
• Hot Rods: 8108
• Athena: P40321034

Part Number:
56-110.HR
