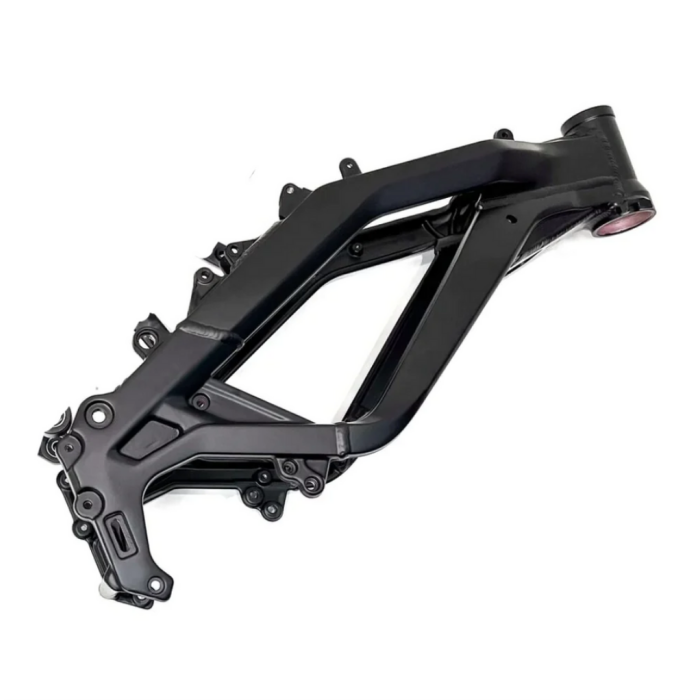

COMPLETE MAIN FRAME ONLY SURRON LIGHT BEE X S

This OEM-style main chassis is the bare Light Bee main frame only. It is supplied without the swingarm or the seat subframe and is intended as a direct replacement using standard Light Bee geometry and mounting points.

Features

• 6061-T4/T6 aluminium alloy construction, high-pressure cast and CNC-finished.
• OEM Light Bee geometry with 26° head-tube angle and 1260 mm wheelbase.
• Designed to accept OEM swingarm, shock linkage, subframe, battery cradle and motor mounts.
• Headset bearings not included.
• No VIN/COC supplied
• Recommended to renew frame/swingarm bushings during installation.

Specifications

• Material: 6061-T4/T6 aluminium alloy.
• Approx. frame weight: 14.5 lb (≈6.6 kg).
• Head-tube angle: 26°
• Wheelbase (OEM geometry): 1260 mm.

Vehicle Fitments

• SURRON LIGHT BEE X (LBX)
• SURRON LIGHT BEE S
