CLUTCH SHOE TOOL KTM 50 SX, PSYCHIC MX-12154 STAINLESS

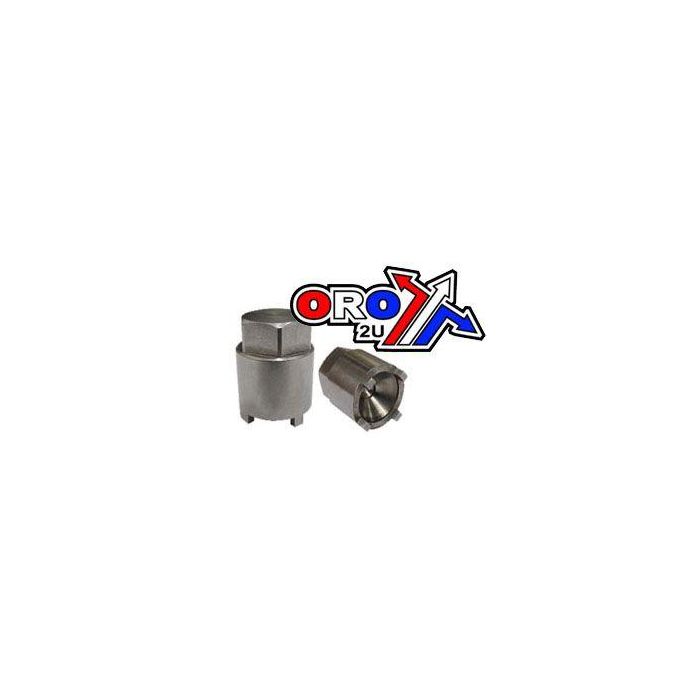

This clutch shoe tool is designed for KTM 50 SX and SXS Mini models (2009–2015). It is constructed from stainless steel and features four drive pins arranged for precise engagement with the clutch shoes. The tool also includes a hexagonal end, facilitating the removal of a specialised nut and stabilising the clutch shoes during assembly. The inner diameter measures 15mm, the outer diameter is 19mm, and the overall length is 23.5mm, with a 15.7mm (5/8 in) hex end.

Features

• Stainless steel construction
• Four drive pins for clutch shoe engagement
• Hex end (15.7mm / 5/8 in) for nut removal and holding clutch shoes during assembly

Specifications

• Inner diameter 15mm
• Outer diameter 19mm
• Overall length 23.5mm
• Hex end 15.7mm (5/8 in)

Vehicle Fitments

• KTM 50 SX 2009–2015
• KTM SXS Mini 2009–2015
