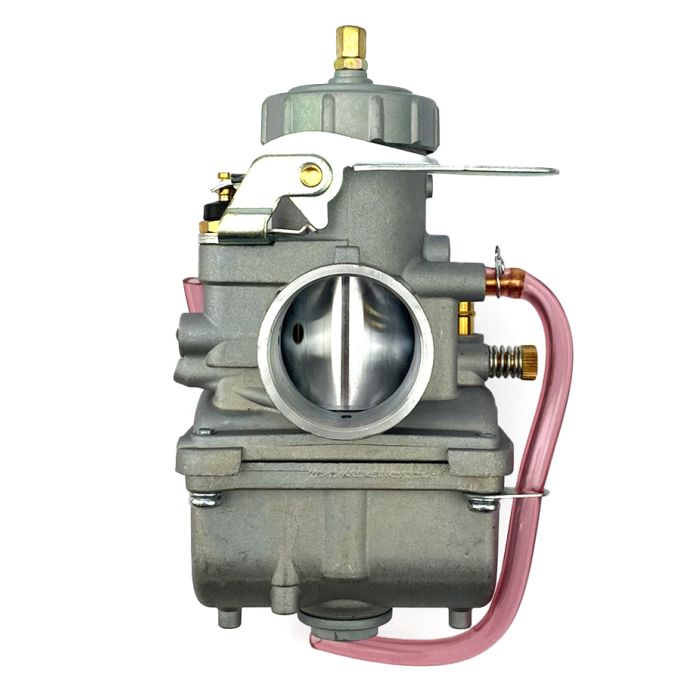

CARBURETOR MIKUNI VM34mm UNIVERSAL ASSEMBLY ROUND SLIDE

A universal Mikuni VM34 round-slide carburettor assembly with a 34 mm venturi, spigot mount and left-hand idle screw. Supplied pre-jetted to VM34-168 specification for general motorcycle, ATV and UTV use. Intended as a drop-in direct replacement for compatible applications and supplied as a complete assembly that does not require additional components; includes a small fuel filter and spare jets.

Features

• Round-slide design with spigot mounting
• Universal replacement for motorcycles, ATVs and UTVs
• Supplied pre-jetted to VM34-168 settings
• Left-hand idle adjuster and lever-operated cold start (choke)
• Constructed to tight tolerances for reliable service
• Direct OEM-style replacement for compatible applications
• Refer to images before ordering to confirm configuration
• Use cross-reference numbers only for identification
• Easy to install; professional installation recommended if unsure
• Includes a small fuel filter and spare jets

Specifications

• Venturi bore: 34 mm
• Model: Mikuni VM34 (VM34-168 configuration)
• Pilot jet: 35 (VM22/210)
• Jet needle: 6DH4
• Needle jet: 159 Q-2
• Main jet: 260 (4/042)
• Air jet: 2.0 (BS30/97)
• Throttle slide cutaway: 2.5 (VM34/110)
• Needle valve: 3.3 (VM34/39)
• Idle screw position: Left
• Air screw position: Right; baseline setting 1.5 turns out
• Cold start (choke): Lever, left side
• Mounting type: Spigot
• Front spigot diameter: 40 mm
• Rear spigot outside diameter: 58 mm
• Overall length: 93 mm
• Height over bore centreline: 93 mm
• Height under bore centreline: 76 mm
• Fuel spigot: 8 mm
• Float height: 24 mm

Cross-Reference OEM Part Numbers

• Mikuni VM34-168 (carburettor assembly)

Vehicle Fitments

• Kawasaki KZ400 1974
• Kawasaki KZ400A Deluxe 1977–1978
• Kawasaki KZ400B 1978–1979
• Kawasaki KZ400C 1978
• Kawasaki KZ400D 1975–1977
• Kawasaki KZ400S Special 1975–1977
